Question#1

Refer to the exhibit.

You are working on a drawing. You copy a set of entities and exit the COPY command. You then use the MOVE command on the same set of entities.
Which default option should you use when prompted to select entities?

A. Spacebar

B. P (Previous)

C. L (Last)

D. A (All)

Explanation:
when you use the MOVE command on a set of entities that you have previously copied, you should use B. P (Previous) as the default option when prompted to select entities. This will select the last set of entities that you modified with any command.
https://forums.autodesk.com/t5/autocad-forum/move-previous-command/td-p/3466896
https://www.cadlinecommunity.co.uk/hc/en-us/articles/360002360178-Move-Copy-Rotate-All-in-one-editing-command-for-AutoCAD

Question#2

A drawing contains an ISO A3 (420 mm x 297 mm) title block in a layout with an ISO A3 page setup The CAD designer must plot the layout to a selected ISO A4 sheet size (297 mm x 210 mm)
Winch plot settings should be used in the Plot dialog to make sure that all drawing information is visible on Ute ISO A4 sheet size?

A. Plot Area = Extents/Plot options = Save changes to layout

B. Plot Area = Extents/Plot Scale = Fil to paper

C. Plot Area = Layout/Plot Scale = 2:1

D. Plot Area = Layout-Plot Scale = 1:1

Explanation:
To ensure that all drawing information is visible when plotting from an ISO A3 layout to an ISO A4 sheet size, the correct plot settings need to be applied.
Open the Plot Dialog:
Type PLOT in the command line and press Enter.
Set Plot Area:
In the Plot dialog, set the "Plot Area" to Extents. This ensures that everything within the drawing extents will be included in the plot.
Adjust Plot Scale:
Set the "Plot Scale" to Fit to paper. This option will automatically scale the drawing to fit within the ISO A4 sheet size (297 mm x 210 mm).
Other Settings:
Ensure that the correct printer/plotter and paper size (ISO A4) are selected.
Optionally, check the "Center the plot" option to ensure the drawing is centered on the sheet.
Save Changes:
Click on the "Preview" button to check the output. If everything looks correct, click "OK" to plot the drawing.
Reference: AutoCAD Help: Plotting and Scaling Drawings - Autodesk Knowledge Network

Question#3

A CAD designer is working on a project where the only drawing available is in POT format The designer imports the PDP into the drawing, but the text objects arc now polylines.
What needs to the done to convert the polylines to text objects.

A. Use the Combine Text tool (TXT2MTXT) and select all of the objects.

B. Use the Recognize SHX Text tool (PDFSHXTFXT) and select all of the objects

C. Use the Edit Polyline (PEDIT) command. Select all of the objects and use the Join option

D. Use the JOIN command and select all of the objects.

Explanation:
Issue with PDF Text Objects:
When importing a PDF into AutoCAD, text objects may be converted to polylines.
This happens because AutoCAD interprets the text as vector graphics rather than editable text.
Conversion Process:
Option A: The Combine Text tool (TXT2MTXT) is used to combine multiple text objects into a single multiline text object. It does not convert polylines back to text.
Option C: The Edit Polyline (PEDIT) command and Join option are used to join polylines, not convert them to text.
Option D: The JOIN command is similar to PEDIT and is used for joining polylines.
Correct Tool:
Option B: The Recognize SHX Text tool (PDFSHXTEXT) is specifically designed to recognize text that has been converted to polylines during PDF import. It converts these polylines back into text objects.
Conclusion:
Use the Recognize SHX Text tool to select all polyline text objects and convert them back to editable text.
Reference: AutoCAD Knowledge Base on PDF Import and Text Recognition.
AutoCAD 2024 User Guide on PDF Import Tools.

Question#4

A drawing contains a Table sObject While trying to edit a cell, the CAD designer notices a chain link symbol with a padlock on it After selecting the cell, which method should the CAD designer use to edit the cell?

A. Double click the cell to change the text

B. Open the data link file and edit the cell

C. Open Properties and change the contents

D. Select the cell and change (he cell style.

Explanation:
Identify the Data Link: Select the table cell that shows the chain link with a padlock icon. This indicates it is linked to an external data source.
Locate the Data Link: Right-click the table and choose Data Links. Note the file path of the linked data file.
Open the Data Link File: Open the linked data file (e.g., an Excel spreadsheet) in its respective application.
Edit the Cell: Make the necessary changes to the cell in the external data file and save the changes.
Update in AutoCAD: Return to AutoCAD and the table should automatically update to reflect the changes made in the external file.
Reference: AutoCAD Help Documentation on Data Linking in Tables

Question#5

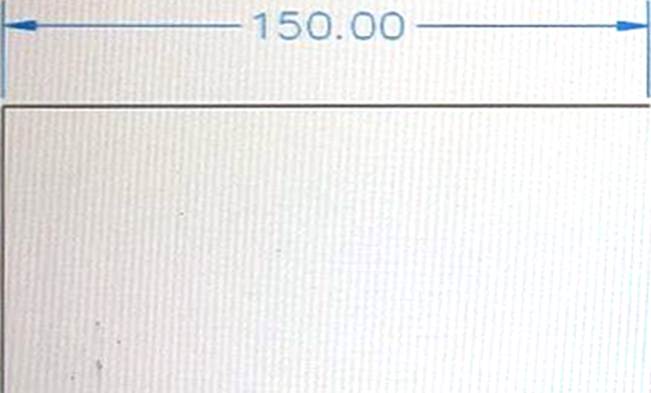

You have a line segment that is 150 units long as shown in the exhibit.

You need the line to be 200 units long without adding any additional linework. The leftmost end of the line must remain in the current position.
What should you do?

A. From the Project option of the Extend command, enter 50 units, and then select the right end of the line.

B. From the Delta option of the Lengthen command, enter 50! units and then select the right end of the line

C. From the Delta option of the Lengthen command, enter 200 units and then select the right end of the line

D. From the Edge Extension option of the Extend command, enter 50 units, and then select the right end of the line

Explanation:
From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2
https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command
