Question#1

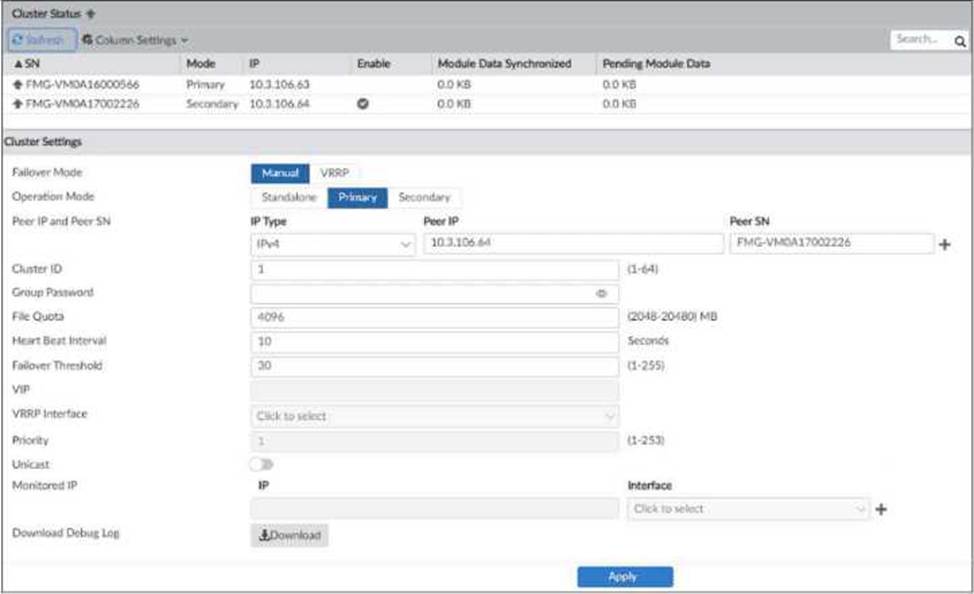

Refer to the exhibit.



Which statement about the environment shown in the exhibit is true? Choose one answer

A. You must restart the secondary device if you promote it to primary.
B. No FortiGuard packages have been synchronized between the cluster members.
C. A failover will take place after five minutes without receiving heartbeat packets.
D. FortiAnalyzer features are not enabled on this FortiManager device.

Explanation:
The exhibit shows a FortiManager HA cluster with one primary and one secondary member. The FortiManager 7.6 Administrator Study Guide clearly states that if FortiAnalyzer features are enabled, you cannot configure FortiManager HA, so in an HA environment like the one shown, FortiAnalyzer features are not enabled. That makes D the correct answer.
A is incorrect because the study guide explicitly says you do not need to reboot a device when promoting it from secondary to primary.
C is incorrect because the failover mode shown is Manual, not VRRP automatic failover, so failover does not occur automatically based on heartbeat loss.
B is not the best answer here because FortiGuard packages are downloaded separately rather than synchronized as HA data, but the exhibit’s key provable conclusion is the HA restriction on FortiAnalyzer features.

Question#2

Push updates are failing on a FortiGate device located behind a network address translation (NAT) device?
Which two settings should the administrator check to correct this problem? (Choose two.)

A. Make sure the NAT device IP address and the correct ports are configured on FortiManager.
B. Make sure FortiGuard updates and web service are enabled on the FortiGuard service interface.
C. Make sure the virtual IP address and the correct ports are configured on the NAT device.
D. Make sure the Bind to IP address option on the FortiGuard service interface is set to the virtual IP address from the NAT device.

Explanation:
FortiManager must have the NAT device's IP address and correct ports configured to communicate properly with the FortiGate behind NAT.
The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

Question#3

What is the purpose of ADOM revisions?

A. ADOM revisions find unused, duplicate, and unnecessary firewall policies and objects.
B. ADOM revisions show specific changes in a policy package when it is installed.
C. ADOM revisions compare previous snapshots of the Policy Package and ADOM-level objects with the device-level database.
D. ADOM revisions save the current state of all policy packages and objects for an ADO

Explanation:
ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

Question#4

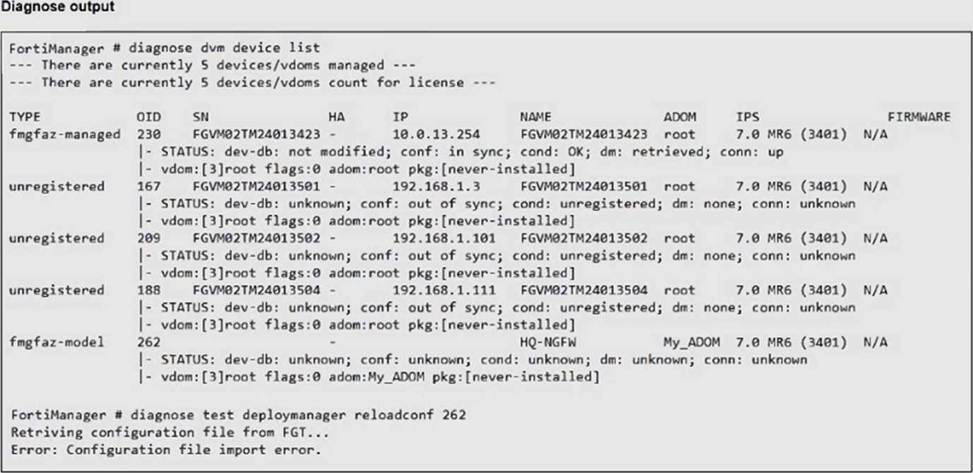

Refer to the exhibits.






An administrator runs the reload failure command diagnose test deploymanager reloadconf 262 on FortiManager.
Why does the administrator receive an error message?

A. The administrator must use the FortiGate name instead of the ID number.
B. The administrator just recently added FortiGate HQ-NGFW as a model device.
C. FortiManager requires the FortiGate serial number instead of the ID number.
D. FortiManager does not support FortiOS version 7.0.

Explanation:
The error occurs because the FortiGate HQ-NGFW device with ID 262 is a newly added model device and has not yet been fully synchronized or installed with a configuration package, which causes the reload configuration command to fail.

Question#5

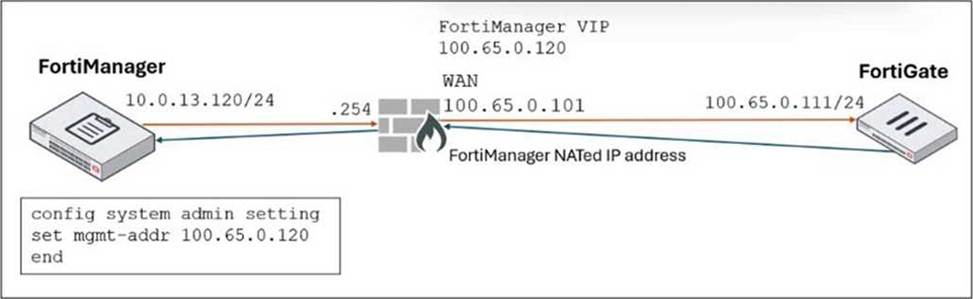

Refer to the exhibit.



FortiManager is operating behind a network address translation (NAT) device, and the administrator configured the FortiManager NATed IP address under the FortiManager system administration settings.
What is the expected result during discovery?

A. FortiManager sets both the 100.65.0.120 IP address and 10.0.13.120 IP address on FortiGate.
B. FortiManager sets both the 100.65.0.120 IP address and 100.65.0.101 IP address on FortiGate.
C. FortiManager sets the 100.65.0.101 IP address on FortiGate.
D. FortiManager sets the 100.65.0.120 IP address on FortiGate.

Explanation:
When FortiManager is behind a NAT device, setting the NATed IP address (100.65.0.120) in the system admin settings causes FortiManager to use that NATed IP address for communication and configuration with FortiGate during discovery and management operations.
