FCP_FSA_AD-5.0 Exam Preparation Material | Fortinet NSE 5 - FortiSandbox 5.0 Administrator

Explanation:
The Study Guide states that HA is configured from the CLI and that “the main HA cluster CLI commands are hc-settings, hc-slave, and hc-status”. It also explains that “You use the hc-settings command and options to configure the main HA settings… node alias, group name, group password, and the HA interface.” The same HA section further says that the primary and secondary nodes must have a dedicated HA communication interface, and specifically notes that “port4 in this example” is the HA interface between them.
On the primary-node example configuration shown on page 137 of the uploaded study guide, the command uses -tM for the primary node with -iport4 for the HA interface. That directly matches option
D. The other options use different node-type flags and do not correspond to the primary-node example. Therefore, the correct command is hc-settings -sc -tM -nPrimaryNode -cFSAGrp - p<password> -iport4.

Explanation:
The best answer is B. The Study Guide explains that under VM settings, “FortiSandbox has a Browser selection that allows you to choose which internet browser the VM instance will use. This helps to customize the test using an internet browser that more closely resembles the user’s environment or just monitor if the test delivers different results.” It also states that the default browser choices are Internet Explorer, Firefox, Chrome, and Edge. In addition, the guide says that “The VM images provided by Fortinet might not suit your needs… You can generate a custom VM that fits your organization’s needs and upload it to FortiSandbox.”
Because only endpoints using Opera are affected, the clean verdict likely occurred because the sandbox environment does not accurately reproduce the exploited browser environment. The most effective fix is to make the sandbox environment match the real target environment more closely by using a custom VM with the same browser behavior as the affected endpoints. The other answers do not address the root cause. STIX/TAXII is unrelated, changing the scan profile file type does not solve a browser-specific exploit path, and job queue priority affects order, not analysis fidelity. Therefore, the required action is to configure a custom VM to use the same browser as the exploited end stations.

Explanation:
From the FortiMail Integration lesson, the Study Guide explicitly states:
"The Scan timeout value determines how long FortiMail will wait for a response from FortiSandbox. The default is 30 minutes. So, if after 30 minutes FortiSandbox is unable to generate a verdict, FortiMail will release the email to the end user."
"SMTP is a store-and-forward protocol. This allows FortiMail to queue the email while FortiSandbox inspects all submitted samples. FortiMail will release the email only if there is a scan timeout event, or FortiSandbox returns a clean verdict."

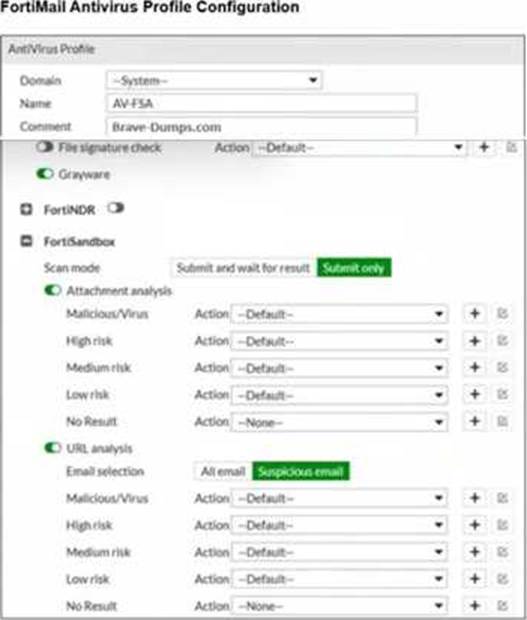

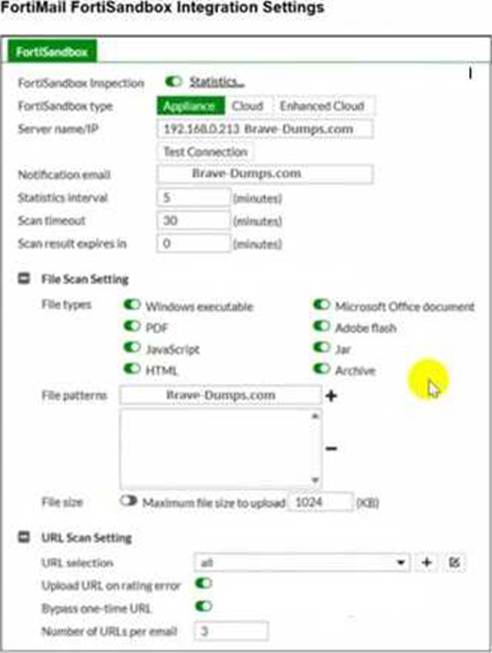

The Integration Settings exhibit clearly confirms Scan timeout = 30 minutes, and the AV Profile shows both Attachment analysis and URL analysis are enabled ― meaning FortiMail will hold/queue emails for up to 30 minutes while FortiSandbox completes inspection of all attachments and URLs before taking action.

Explanation:
From the Scanning and Rating Components lesson, the Study Guide explicitly states:
"FortiSandbox allows you to modify the number of CPUs and memory assigned to a custom VM. This feature is supported on hardware models and private cloud VMs."
Hardware models = Device-based (Option C)
Private cloud VMs = Private cloud (Option A)
Azure non-nested mode and FortiSandbox Cloud do not support custom VM creation as per the Study Guide.

Explanation:
From the Deployment and System Settings lesson, the Study Guide states:
"The test-network command checks FortiGuard services as its last set of validation tests. These include the FortiGuard distribution network (FDN) accessibility, FDN contract expiration, web filtering service, and the community cloud service. All these FortiGuard services should be reachable and valid for FortiSandbox to be effective."
"The diagnose-debug fdn command provides details around FortiSandbox and the FortiGuard Distribution Network (FDN) communication and updates."
FortiGuard Distribution Network (FDN) communication requires TCP/443 for HTTPS-based update and licensing communication. The current firewall rules allow TCP/4443 (API/management), UDP/8888 (FortiGuard queries), and UDP/53 (DNS), but TCP/443 is missing ― which is the standard port required for FortiGuard FDN connectivity and license validation
