Explanation:
Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:
Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.
In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.
According to the exhibit:
Virtual Cluster 1 (edit 1) contains VDOMs "Core1" and "root".
Virtual Cluster 2 (edit 2) contains VDOM "Core2".
The HA uptime is stated to be the same for both devices.
For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.
In both units, override is disabled (default).
Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2's (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.

Explanation:
When adding an additional FortiGate to an enterprise network that is already reaching its resource limits, the goal is to distribute traffic efficiently and ensure high availability.
FGSP (FortiGate Session Life Support Protocol) with external load balancers
- FGSP allows session-aware load balancing between multiple FortiGate units without requiring them to be in an HA (High Availability) cluster.
- With external load balancers, incoming traffic is evenly distributed across multiple FortiGate devices.
- This approach is useful for scaling out traffic handling capacity while ensuring that sessions remain synchronized between firewalls.
- FGSP is effective when stateful failover is required but without the constraints of traditional HA.
FGCP (FortiGate Clustering Protocol) in active-active mode and with switches
- FGCP active-active mode enables multiple FortiGate devices to share traffic loads, increasing throughput and efficiency.
- Active-active mode is suitable for balancing UTM processing across multiple FortiGates, making it ideal when resource limits are a concern.
- Using switches ensures redundancy and avoids single points of failure in the network.
- This mode is commonly used in enterprise networks where both scalability and redundancy are required.

Explanation:

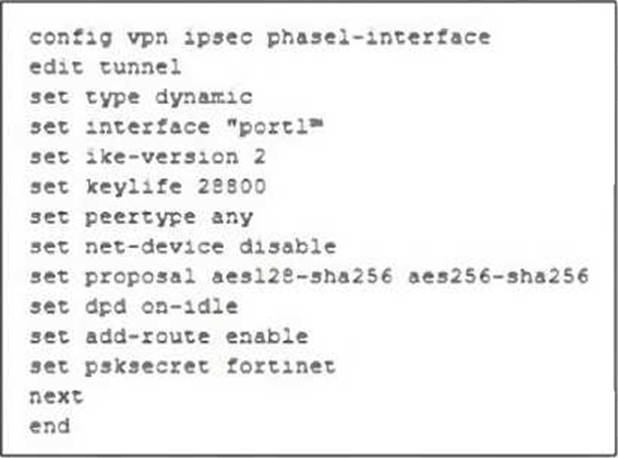

This IPsec Phase 1 configuration defines a dynamic VPN tunnel that can accept connections from multiple peers. The settings chosen here suggest a configuration optimized for networks with intermittent traffic patterns while ensuring resources are used efficiently.
Key configurations and their impact:
● set type dynamic → This allows multiple peers to establish connections dynamically without
needing predefined IP addresses.
● set ike-version 2 → Uses IKEv2, which is more efficient and supports features like EAP authentication and reduced rekeying overhead.
● set dpd on-idle → Dead Peer Detection (DPD) is triggered only when the tunnel is idle, reducing unnecessary keep-alive packets and improving resource utilization.
● set add-route enable → FortiGate automatically adds the route to the routing table when the tunnel is established, ensuring connectivity when needed.
● set proposal aes128-sha256 aes256-sha256 → Uses strong encryption and hashing algorithms, ensuring a secure connection.
● set keylife 28800 → Sets a longer key lifetime (8 hours), reducing the frequency of rekeying, which is beneficial for stable connections.
Because DPD is set to on-idle, the tunnel will not constantly send keep-alive messages but will still ensure connectivity when traffic is detected. This makes the configuration ideal for networks with regular but non-continuous traffic, balancing security and resource efficiency.

Explanation:
When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session.
The initial step involves:
● Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.
● Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.
● IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.
Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.

Explanation:

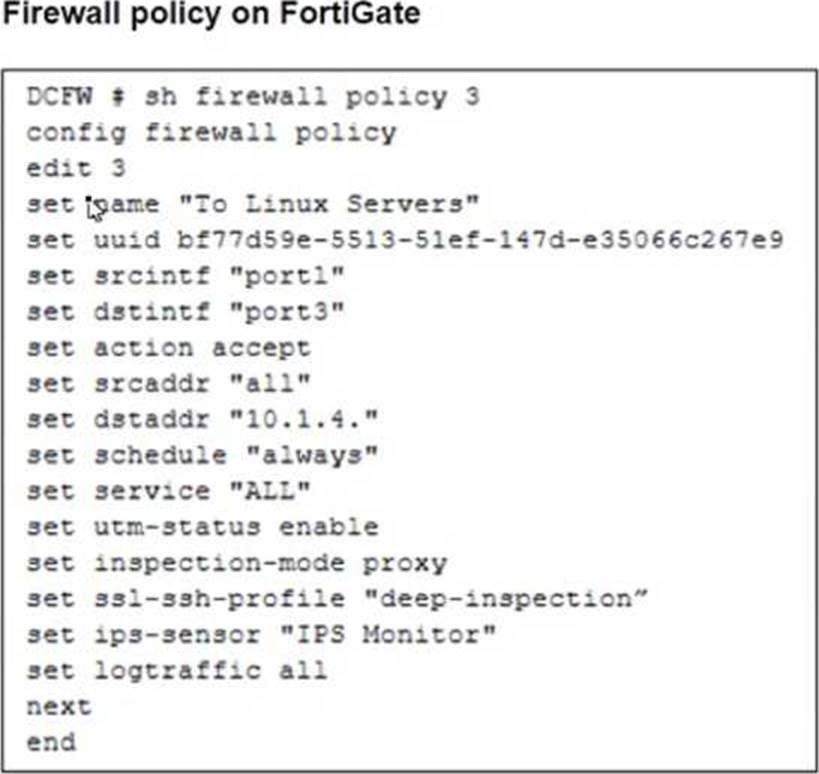

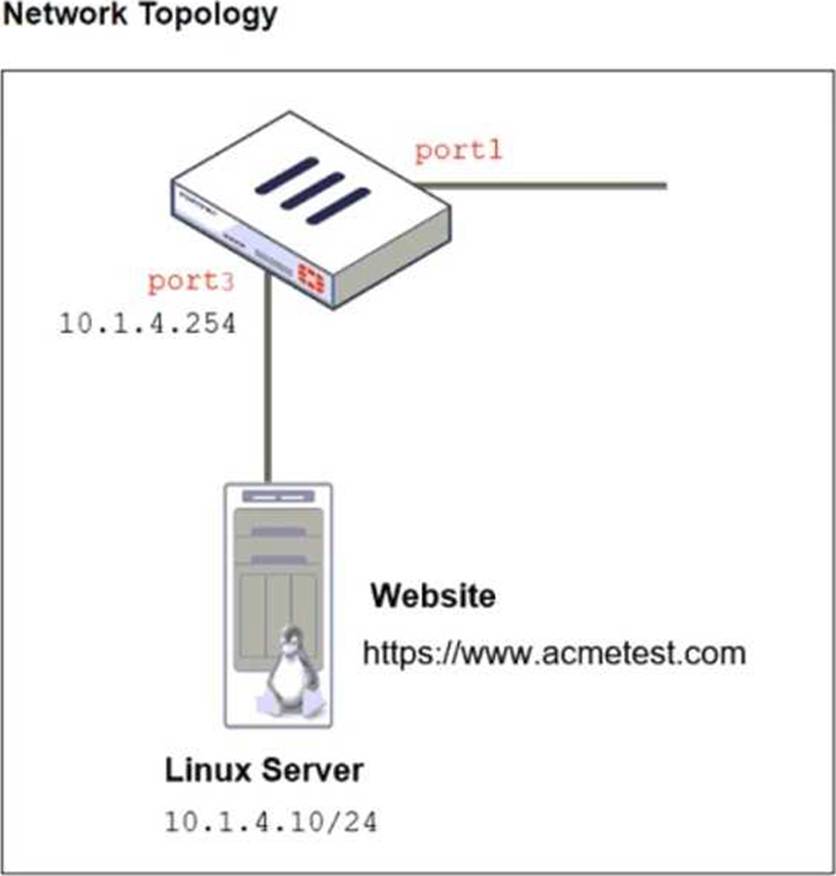

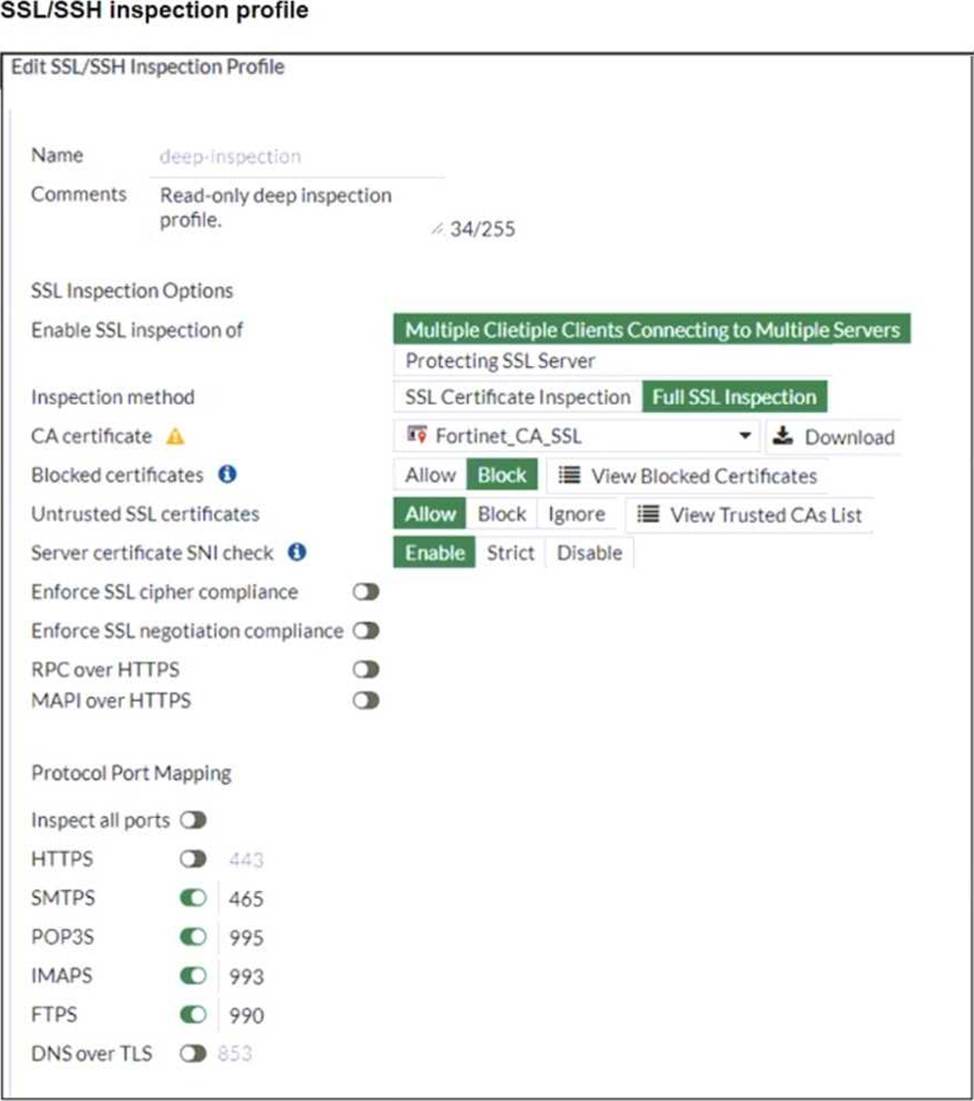

The FortiGate SSL/SSH inspection profile is configured for Full SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewall policy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profile only applies to client-side SSL inspection.
To detect HTTPS-based attacks targeting the Linux server:
● FortiGate must act as an SSL intermediary to inspect encrypted traffic destined for the web server.
● The administrator must upload the SSL certificate of the Linux web server to FortiGate so that the server-side SSL inspection can decrypt incoming HTTPS traffic before analyzing it.
