FCSS_SDW_AR-7.4 Exam Preparation Material | FCSS - SD-WAN 7.4 Architect

Prepare for the FCSS_SDW_AR-7.4 with reliable study materials, practice questions, and key exam insights.

Prepare for the FCSS_SDW_AR-7.4 FCSS - SD-WAN 7.4 Architect exam with CertQueen's independently developed study resources. Review important concepts, practice scenario-based questions, and use clear explanations to identify areas that require further study.

Question#1

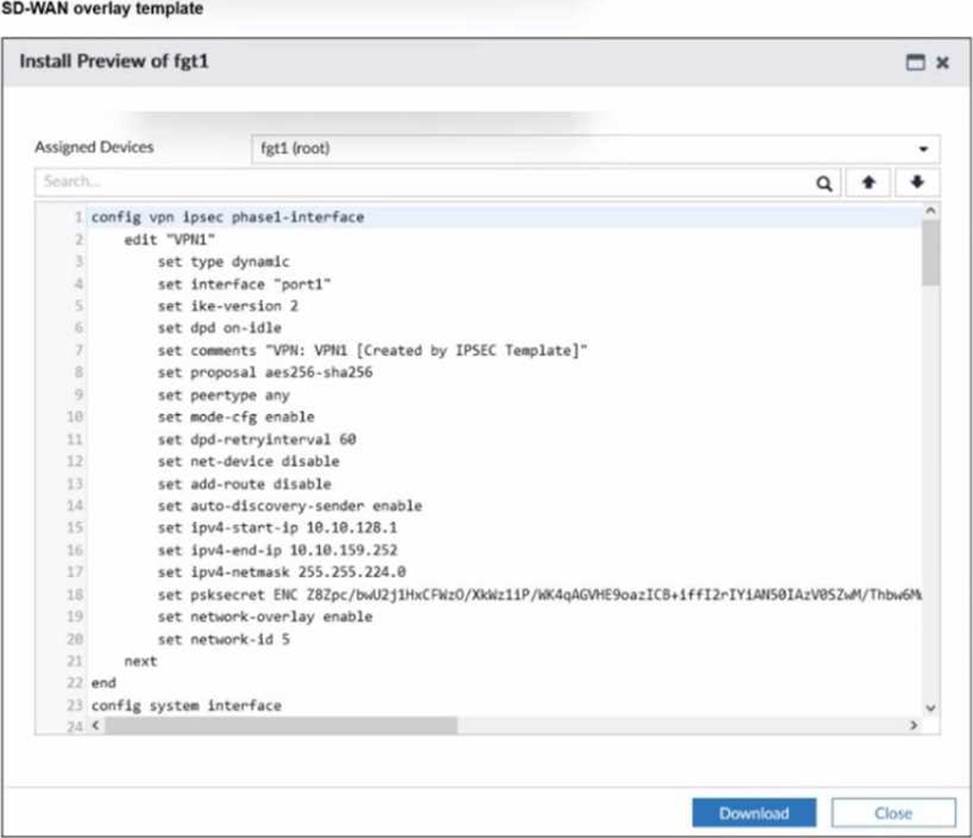

Refer to the exhibit.



The administrator used the SD-WAN overlay template to prepare an IPsec tunnels configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the FortiManager installation preview for one FortiGate device.
Based on the exhibit, which statement best describes the configuration applied to the FortiGate device?

A. It is a spoke device that establishes dynamic IPsec tunnels to the hub. The local subnet range is 10.10.128.0/23.
B. It is a hub device. It can send ADVPN shortcut offers.
C. It is a hub device. It will automatically discover the spoke devices and add them to the SD-WAN topology.
D. It is a spoke device that establishes dynamic IPsec tunnels to the hub It can send ADVPN shortcut requests.

Question#2

Which two interfaces are considered overlay links? (Choose two.)

A. LAG
B. IPsec
C. Physical
D. GRE

Question#3

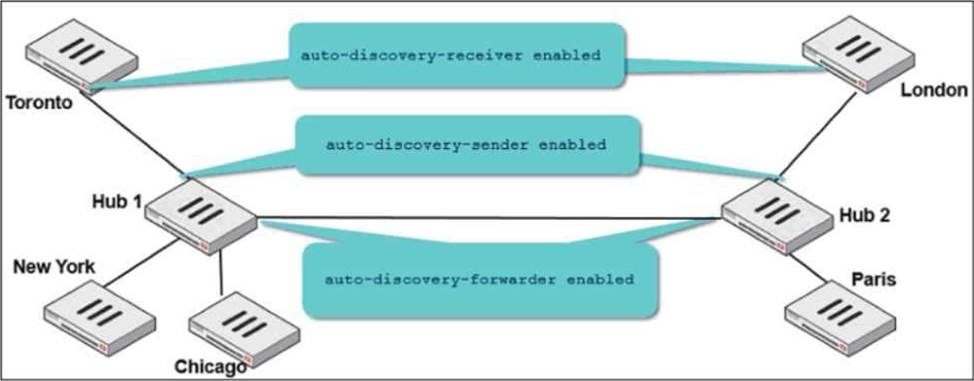

Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2. The administrator configured ADVPN on both hub-and-spoke groups.



Which two outcomes are expected if a user in Toronto sends traffic to London? (Choose two.)

A. London generates an IKE information message that contains the Toronto public IP address.
B. Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VP
C. Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.
D. The first packets from Toronto to London are routed through Hub 1 then to Hub 2.

Question#4

What are two benefits of using forward error correction (FEC) in IPsec VPNs? (Choose two.)

A. FEC supports hardware ofloading.
B. FEC improves reliability of noisy links.
C. FEC transmits parity packets that can be used to reconstruct packet loss.
D. FEC can leverage multiple IPsec tunnels for parity packets transmission.

Question#5

Which two statements correctly describe what happens when traffic matches the implicit SD-WAN rule? (Choose two.)

A. The session information output displays no SD-WAN service id.
B. Traffic is load balanced using the algorithm set for the v4-ecmp-mode setting.
C. The traffic is distributed, regardless of weight, through all available static routes.
D. Traffic does not match any of the entries in the policy route table.
E. FortiGate flags the session with may_dirty and vwl_def ault.
