HPE7-A06 Exam Preparation Material | Aruba Certified Campus Access Switching Expert Written Exam

Explanation:
The client wants to automate troubleshooting processes and gain better visibility into their network. We need to identify the recommended Aruba solution.
Analysis of Options:
Conclusion: While custom scripting (C) allows automation, Aruba Central AIOps (D) is the platform-integrated solution specifically marketed and designed by HPE Aruba Networking to provide enhanced visibility and automated insights for troubleshooting campus networks. It is the most direct and recommended solution among the options for achieving these goals within the Aruba ecosystem.
References: Aruba Central documentation (AIOps features), AOS-CX NAE and REST API documentation. This relates to "Troubleshooting" (10%) and "Performance Optimization" (6%) objectives.

Explanation:
To enable DHCP Endpoint Profiling, the switch needs to forward relevant DHCP packets from the client to the ClearPass server. The most common method is configuring the switch to act as a DHCP relay agent for the ClearPass server IP address on the client VLAN's Switched Virtual Interface (SVI).
In scenarios where port access control (like 802.1X or MAC Auth) is enabled, clients might need to send DHCP requests before they are fully authenticated. To allow this while maintaining security, a pre-authentication role with limited access (specifically allowing DHCP) can be applied to the port initially.

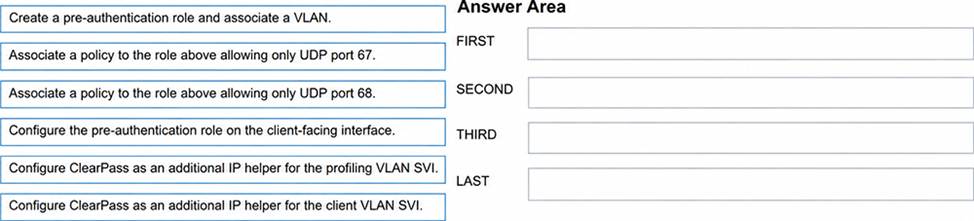

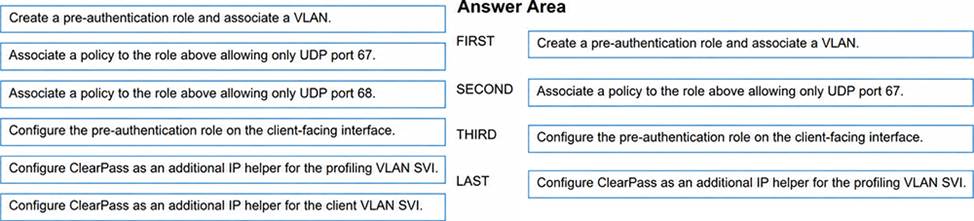

The logical sequence based on the provided steps, assuming a pre-authentication workflow is intended, is:
Create the role: Define the pre-authentication role container and associate it with the appropriate initial VLAN if needed.
Permit DHCP in the role: Apply an Access Control List (ACL) or policy to this role that permits the necessary DHCP traffic (UDP ports 67 and 68). The step provided only mentions UDP 67, which allows the client's initial Discover/Request packets towards the server/relay. (A complete solution requires allowing return traffic on UDP 68 as well).
Apply the role: Configure the client-facing physical interface to use this pre-authentication role before the final role is assigned post-authentication.
Configure DHCP Relay: Configure the ip helper-address <clearpass_ip> command on the client's VLAN SVI. This instructs the switch to forward the DHCP packets it receives from clients in that VLAN to the ClearPass server (in addition to forwarding them to the actual DHCP server). ClearPass receives these packets and extracts information for profiling.
This sequence ensures that even before full authentication, DHCP is permitted, and the necessary packets are relayed to ClearPass for profiling.
References: AOS-CX Security Guide (Port Access, Roles, AAA), AOS-CX IP Helper / DHCP Relay Guide, ClearPass Deployment Guides (Endpoint Profiling using DHCP). This relates to "Authentication/Authorization" (9%), "Security" (10%), and "Switching" (19%).

Explanation:

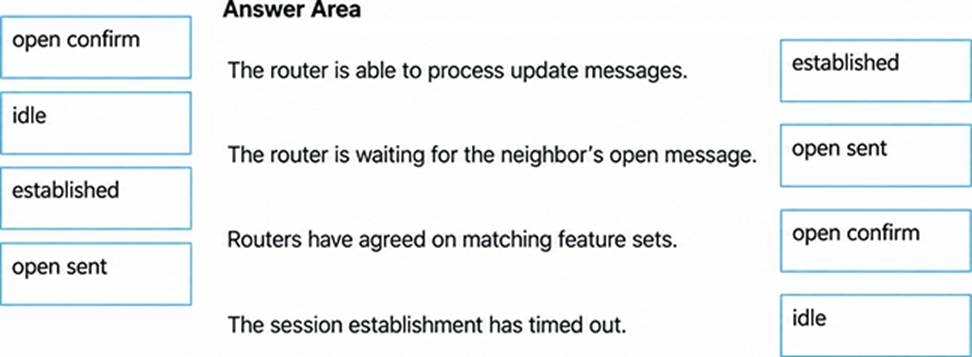

The router is able to process update messages. -->established
The router is waiting for the neighbor's open message. -->open sent
Routers have agreed on matching feature sets. -->open confirm
The session establishment has timed out. -->idle

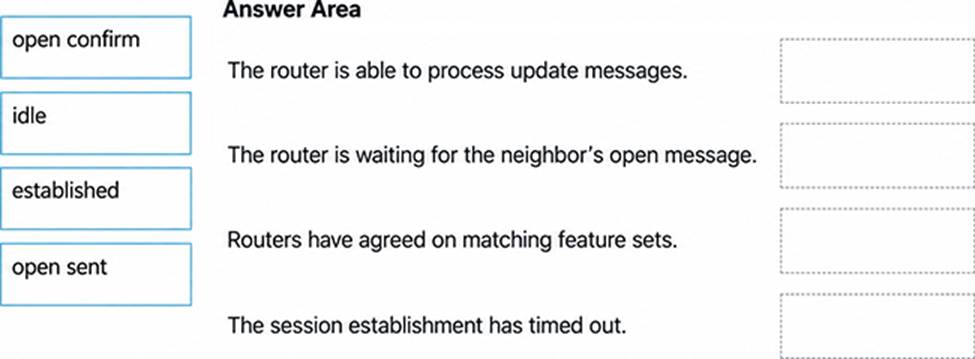

This question requires matching BGP connection states from the BGP Finite State Machine (FSM) to descriptions of conditions that occur within or lead to those states.
Idle: This is the initial state where BGP awaits a start event or retries after a failure. It's also the state entered upon error detection or session closure, including timeouts during connection attempts.
Open Sent: After a TCP connection is established, the local router sends a BGP OPEN message with its parameters (AS number, capabilities, etc.) and transitions to the Open Sent state while waiting to receive an OPEN message from its BGP neighbor.
Open Confirm: Once the router receives an OPEN message from its neighbor and validates the parameters (e.g., matching AS, compatible capabilities), it sends a KEEPALIVE message and moves to the Open Confirm state. It waits for a KEEPALIVE from the neighbor to confirm the session. Basic parameter checks and capability negotiations are successfully completed in this phase.
Established: This is the final, stable state where BGP peering is successful. Both routers have accepted each other's parameters via the OPEN messages and confirmed the session with KEEPALIVEs. In this state, the routers can exchange UPDATE messages containing routing information.
References: RFC 4271 (BGP4 specification - Section 8, Finite State Machine), BGP configuration and troubleshooting guides for AOS-CX. This relates to the "Routing" (16%) and "Troubleshooting" (10%) objectives.

Explanation:
The goal is to configure OSPF on a router so that it advertises only a 10.1.0.0/16 summary route for the specific SVIs (VLAN 11, 12, 13, assumed to be within the 10.1.x.x range) to its OSPF neighbors within the same area (Area 0).
OSPF Intra-Area Behavior:
A fundamental principle of OSPF (link-state protocols) is that all routers within the same area must have an identical Link State Database (LSDB) for that area.
This means all routers learn about all the specific networks (Type-1 Router LSAs, Type-2 Network LSAs) within their area.
OSPFv2 does not support summarizing routes in a way that hides specific network LSAs from other routers within the same area.

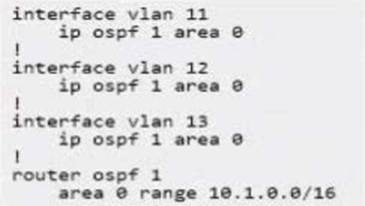

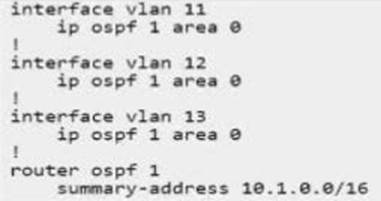

Summarization occurs only at area boundaries (by ABRs using Type-3 Summary LSAs via the area range command) or for external routes redistributed into OSPF (by ASBRs using Type-5 External LSAs via the summary-address command).
Analysis of Options:
Conclusion:
The question asks for something that OSPFv2 cannot do: advertise only a summary route within the same area while suppressing specifics.
Therefore, none of the configurations will achieve the exact stated outcome.
However, if the question is flawed and intends to ask which configuration uses the correct command structure for summarizing internal OSPF routes (even if only effective between areas), then the area range command is the relevant one.
Both A and E use this command.
Option E is slightly better structured as it shows the interfaces being added to OSPF Area 0 first.
Assuming this is the intended direction despite the impossibility of the specific request, E is the most plausible choice among the given options.
References: RFC 2328 (OSPFv2), OSPF Configuration Guides for AOS-CX (explaining area range for ABRs and summary-address for ASBRs).
This relates to the "Routing" (16%) objective.
