JN0-106 Exam Preparation Material | Junos, Associate (JNCIA-Junos)

Explanation:
In the Junos OS environment, distinguishing between static diagnostic data and real-time telemetry is crucial for effective troubleshooting. While commands like show interfaces provide a cumulative snapshot of counters since the last reboot or counter clear, they do not easily reveal instantaneous spikes or fluctuating utilization patterns. To address the requirement for "live, real-time traffic updates," the monitor interface command is the correct operational tool.
When an architect executes monitor interface ge-0/0/5, the CLI launches an interactive, ncurses-based screen that refreshes every second. This display provides immediate visibility into input and output bits-per-second (bps), packets-per-second (pps), and error increments. Unlike static commands, this real-time stream allows a technician to observe micro-bursts or sustained high-utilization periods as they occur, which is essential for diagnosing "intermittent slowness" caused by congestion. In contrast, show chassis hardware focuses on physical inventory, and show interfaces terse only provides administrative and operational status. Even the extensive version of the show command only offers a point-in-time calculation of averages. Therefore, monitor interface is the primary mechanism for interactive performance auditing of individual ports on the Packet Forwarding Engine.

Explanation:
Prefix lists in Junos OS are named collections of IP addresses or network prefixes defined under the [edit policy-options] hierarchy. One of their most powerful features is their versatility and reusability. Because they are defined as independent objects, a single prefix list can be referenced in multiple different routing policies across the device. This modularity ensures consistency; for instance, if a set of "internal" prefixes changes, an administrator only needs to update the list in one location for those changes to propagate to every policy that utilizes it.
Furthermore, prefix lists are designed to be used across different functional areas of the Junos architecture. They are equally valid for use in routing policies (to control the import or export of routes between protocols like BGP or OSPF) and in firewall filters (to match source or destination addresses for transit or management traffic). When used in a routing policy, the prefix list typically performs an exact match on the prefix length unless modified by a match type like orlonger. In a firewall filter, it acts as a high-speed lookup table for the Packet Forwarding Engine. This dual-purpose capability makes prefix lists a foundational tool for architects seeking to implement scalable, automated security and routing logic within a unified configuration framework.

Explanation:

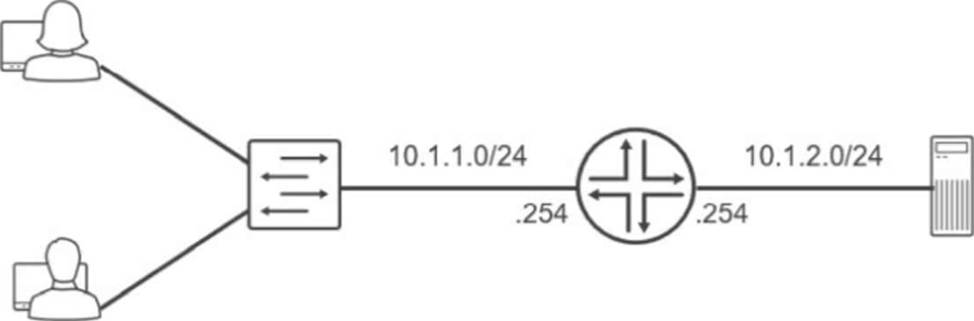

The network topology illustrates two distinct IP subnets, 10.1.1.0/24 and 10.1.2.0/24, separated by a Layer 3 router. For hosts on the first subnet to communicate with the server on the second subnet, an intermediary device must perform inter-subnet routing. The router acts as the exit point for each local segment, utilizing its interfaces assigned with the .254 host address as the logical path to external networks.
The fundamental requirement for this communication is the configuration of a default gateway on all end-nodes. When the users (on 10.1.1.0/24) attempt to send data to the server (on 10.1.2.0/24), their local TCP/IP stack recognizes the destination is not on the local wire. Without a defined default gateway, the hosts would simply drop the traffic as unroutable. By setting the default gateway to 10.1.1.254 for users and 10.1.2.254 for the server, the hosts are instructed to forward all off-net traffic to the router. The router then consults its routing table―which contains these directly connected routes―and forwards the packets to the appropriate egress interface. While VLAN tagging or routing protocols could exist in more complex environments, the primary necessity for basic reachability between these two specific segments is a correctly configured gateway on the terminal devices. Networking Fundamentals, IP Routing Basics, Default Gateway Configuration.

Explanation:
The load command in Junos OS provides several operational methods for importing configuration data into the candidate buffer. When an administrator needs to perform a "clean slate" update―where the objective is to completely replace the existing candidate configuration with a new hierarchical file―the override option is the correct tool. Unlike load merge, which blends new data with the existing configuration, or load replace, which only updates specifically tagged sections, load override discards every statement currently in the candidate configuration and substitutes it entirely with the new content.
Using the terminal keyword in conjunction with override allows the architect to paste a large hierarchical configuration directly into the Command Line Interface (CLI). This is the most efficient method for applying validated templates, restoring full system backups, or migrating configurations between devices without having to manually delete existing parameters. After the data is pasted and the process is finalized (typically with a Ctrl+D sequence), the Junos OS kernel validates the new candidate configuration against the device's hardware and software capabilities. To make these changes active and operational, a subsequent commit command must be executed. This comprehensive replacement mechanism ensures configuration integrity by eliminating any potential remnants of previous, unwanted settings that might conflict with the new deployment.

Explanation:
Comprehensive and Detailed 150 to 250 words of Explanation From: The Transmission Control Protocol (TCP) is a core transport-layer protocol within the TCP/IP suite designed to provide a highly reliable, connection-oriented service. Unlike the User Datagram Protocol (UDP), which is connectionless and best-effort, TCP ensures that data is delivered accurately and in the correct order. A defining characteristic of TCP is its use of a three-way handshake to establish a session. This process involves the exchange of SYN, SYN-ACK, and ACK segments, which synchronizes sequence numbers between the two endpoints and ensures both hosts are ready for data transfer.
Furthermore, TCP provides reliable, ordered delivery by utilizing sequence numbers and acknowledgments. Each data segment is assigned a sequence number; the receiving host uses these numbers to reassemble the data in its original order, even if segments arrive out of sequence due to network jitter or multiple paths. If a segment is lost, the lack of a timely acknowledgment triggers a retransmission, guaranteeing that the application receives all data. TCP does not provide fixed latency guarantees, as its error-recovery mechanisms can introduce delays. Additionally, TCP is a unicast-only protocol and does not support broadcasting on Ethernet. Networking Fundamentals, Transport Layer Protocols, TCP vs. UDP.
