Explanation:
Understanding the Exhibit Setup:

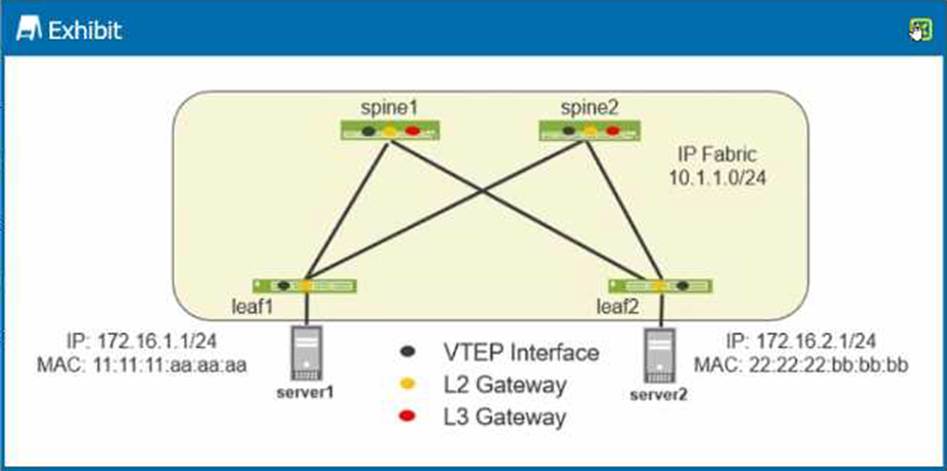

The network diagram shows an EVPN-VXLAN setup, a common design for modern data centers enabling Layer 2 and Layer 3 services over an IP fabric.
Leaf1 and Leaf2 are the leaf switches connected to Server1 and Server2, respectively, with each server in a different subnet (172.16.1.0/24 and 172.16.2.0/24).
Spine1 and Spine2 are part of the IP fabric, interconnecting the leaf switches.
EVPN-VXLAN Basics:
EVPN (Ethernet VPN) provides Layer 2 and Layer 3 VPN services using MP-BGP.
VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets for transmission across an IP network.
VTEP (VXLAN Tunnel Endpoint) interfaces on leaf devices handle VXLAN encapsulation and decapsulation.
Integrated Routing and Bridging (IRB):
IRB interfaces are required on leaf1 and leaf2 (where the endpoints are directly connected) to route between different subnets (in this case, between 172.16.1.0/24 and 172.16.2.0/24).
The IRB interfaces provide the necessary L3 gateway functions for inter-subnet communication.
Traffic Flow Analysis:
Traffic from Server1 (172.16.1.1) destined for Server2 (172.16.2.1) must traverse from leaf1 to leaf2.
The traffic will be VXLAN encapsulated on leaf1, sent over the IP fabric, and decapsulated on leaf2.
Since the communication is between different subnets, the IRB interfaces on leaf1 and leaf2 are
crucial for routing the traffic correctly.
Correct Statements:
C. An IRB Interface must be configured on leaf1 and leaf2: This is necessary to perform the inter-subnet routing for traffic between Server1 and Server2.
D. Traffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2: This describes the correct VXLAN operation where the traffic is encapsulated by leaf1 and decapsulated by leaf2.
Data Center
Reference: In EVPN-VXLAN architectures, the leaf switches often handle both Layer 2 switching and Layer 3 routing via IRB interfaces. This allows for efficient routing within the data center fabric without the need to involve the spine switches for every routing decision.
The described traffic flow aligns with standard EVPN-VXLAN designs, where direct VXLAN tunnels between leaf switches enable seamless and scalable communication across a data center network.

Explanation:
Analyzing the Exhibit Output:

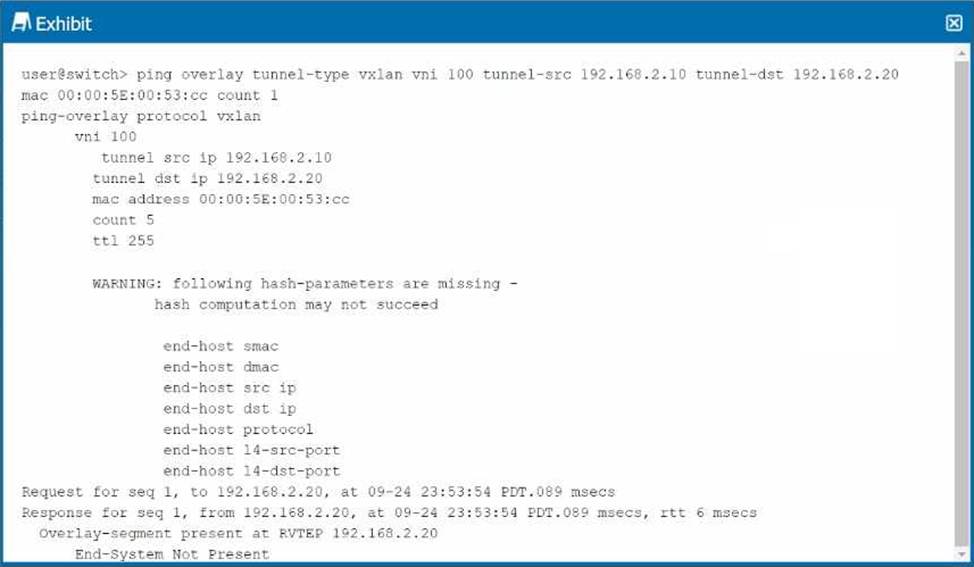

The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present. Understanding the Response:
The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.
Conclusion:
Option B: Correct―The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the "End-System" is not present.

Explanation:
Understanding Multihomed CE-to-PE VXLAN Environment:
In a VXLAN environment using EVPN signaling, multiple PEs (Provider Edge devices) can be connected to the same CE (Customer Edge device). This setup is referred to as multihoming, where a CE device has multiple connections to the network to ensure redundancy and load balancing.
Role of the Designated Forwarder:
The designated forwarder (DF) is a mechanism used in EVPN to manage the forwarding of broadcast,
unknown unicast, and multicast (BUM) traffic in a multihomed environment. The DF is selected to
ensure that only one of the PEs forwards this type of traffic to the CE, preventing loops and
unnecessary duplicate packets.
Avoiding Duplicate Packets:
Without a designated forwarder, all PEs connected to a multihomed CE could potentially forward the same packet to the CE, resulting in duplicate packets. This duplication can cause issues with packet processing on the CE, leading to inefficiencies and potential network problems. Conclusion:
Option D: Correct―The designated forwarder is essential to prevent duplicate packets from being received on multihomed hosts, ensuring that only one PE forwards BUM traffic to the CE.

Explanation:
Understanding VXLAN Tunneling:
VXLAN (Virtual Extensible LAN) is a network virtualization technology that addresses the scalability issues associated with traditional VLANs. VXLAN encapsulates Ethernet frames in UDP, allowing Layer 2 connectivity to extend across Layer 3 networks.

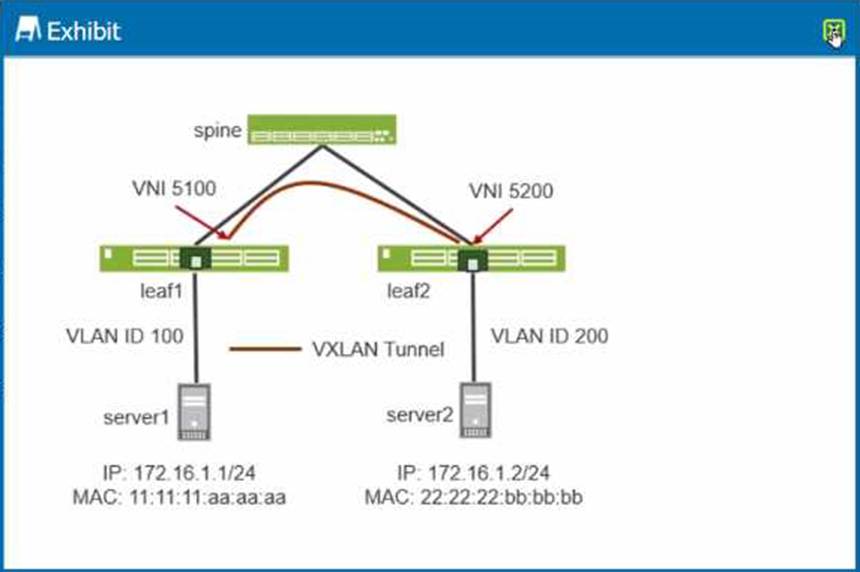

Each VXLAN network is identified by a unique VXLAN Network Identifier (VNI). In this exhibit, we have two VNIs, 5100 and 5200, assigned to the VXLAN tunnels between leaf1 and leaf2.
Network Setup Details:
Leaf1: Connected to Server1 with VLAN ID 100 and associated with VNI 5100.
Leaf2: Connected to Server2 with VLAN ID 200 and associated with VNI 5200.
Spine: Acts as the interconnect between leaf switches.
Traffic Flow Analysis:
When traffic is sent from Server1 to Server2, it is initially tagged with VLAN ID 100 on leaf1.
The traffic is encapsulated into a VXLAN packet with VNI 5100 on leaf1.
The packet is then sent across the network (via the spine) to leaf2.
On leaf2, the VXLAN header is removed, and the original Ethernet frame is decapsulated. Leaf2 will then associate this traffic with VLAN ID 200 before forwarding it to Server2.
Correct Interpretation of the Exhibit:
The traffic originating from Server1, which is tagged with VLAN ID 100, will be encapsulated into VXLAN and transmitted to leaf2.
Upon arrival at leaf2, it will be decapsulated, and since it is associated with VNI 5200 on leaf2, the traffic will be retagged with VLAN ID 200.
Therefore, the traffic will reach Server2 tagged with VLAN ID 200, which matches the network
configuration shown in the exhibit.
Data Center
Reference: This configuration is typical in data centers using VXLAN for network virtualization. It allows isolated Layer 2 segments (VLANs) to be stretched across Layer 3 boundaries while maintaining distinct VLAN IDs at each site.
This approach is efficient for scaling large data center networks while avoiding VLAN ID exhaustion and enabling easier segmentation.
In summary, the correct behavior, as per the exhibit and the detailed explanation, is that traffic sent from Server1 will be tagged with VLAN ID 200 when it reaches Server2 via leaf2. This ensures proper traffic segmentation and handling across the VXLAN-enabled data center network.

Explanation:

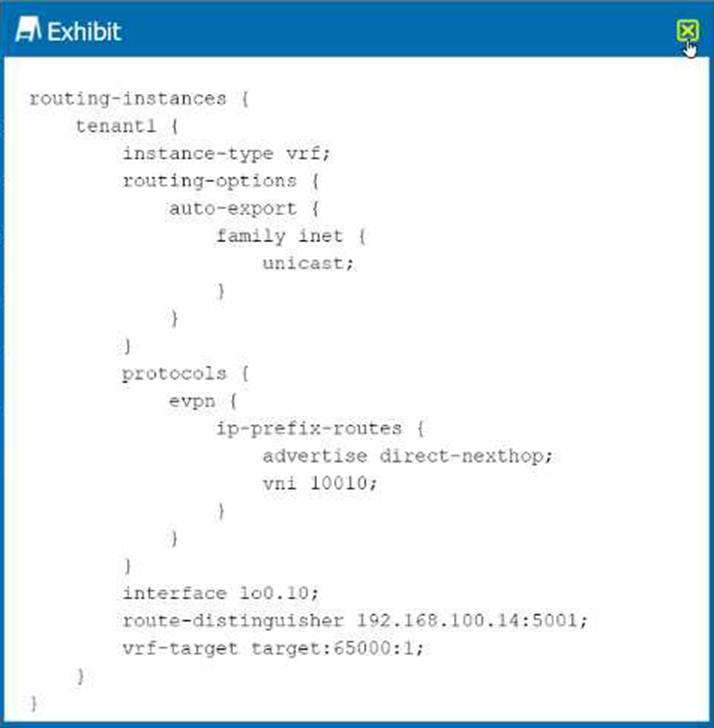

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
Understanding EVPN Type 5 Routes:
EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
VRF Target Setting:
The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
Other Options:
Option B: Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
Option C: Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
Option D: Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.
