Explanation:
In a 1+1 High Availability (HA) deployment, FortiNAC-F supports two primary methods for management access: individual IP addresses or a Shared IP Address (also known as a Virtual IP or VIP). The Shared IP option is part of a Layer 2 HA design, which simplifies administration by providing a single URL or IP that always points to whichever appliance is currently in the "Active" or "In Control" state.
For a Shared IP configuration to function correctly, the Primary and Secondary administrative interfaces (port1) must be on the same subnet. This requirement exists because the Shared IP is a logical address that is dynamically assigned to the physical interface of the active unit. Since only one unit can own the IP at a time, both units must reside on the same broadcast domain (Layer 2) to ensure that ARP requests for the Shared IP are correctly answered and that the gateway remains reachable regardless of which unit is active. If the appliances were on different subnets (a Layer 3 HA design), a shared IP could not be used because it cannot "float" across different network segments; instead, administrators would need to manage each unit via its unique physical IP or use a FortiNAC Manager.
"For L2 HA configurations, click the Use Shared IP Address checkbox and enter the Shared IP Address information... If your Primary and Secondary Servers are not in the same subnet, do not use a shared IP address. The shared IP address moves between appliances during a failover and recovery and requires both units to reside on the same network." ― FortiNAC-F High Availability Reference Manual: Shared IP Configuration.

Explanation:

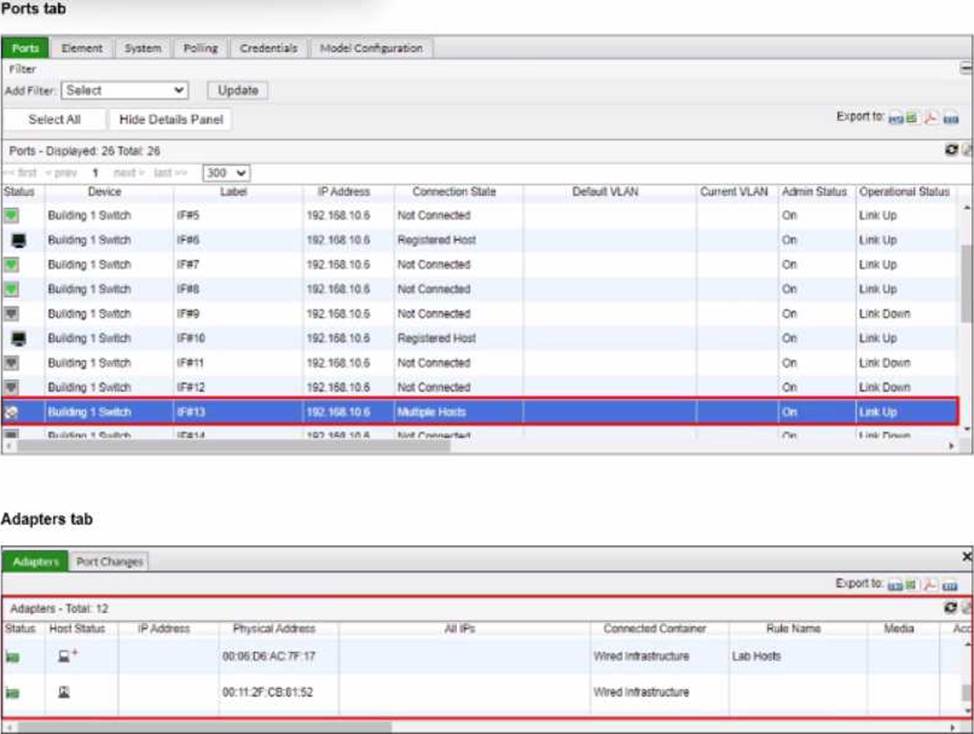

In FortiNAC-F, Port Groups are used to apply specific enforcement behaviors to switch ports. When a port is assigned to an enforcement group, such as Forced Registration or Forced Remediation, FortiNAC-F overrides normal policy logic to force all connected adapters into that specific state. The exhibit shows a port (IF#13) with "Multiple Hosts" connected, which is a common scenario in environments using unmanaged switches or hubs downstream from a managed switch port.
According to the FortiNAC-F Administrator Guide, it is possible for a single port to be a member of
multiple port groups. However, when those groups have conflicting enforcement actions―such as one group forcing a registration state and another forcing a remediation state―FortiNAC-F utilizes a ranking system to resolve the conflict. In the FortiNAC-F GUI under Network > Port Management > Port Groups, each group is assigned a rank. The system evaluates these ranks, and only the higher ranked enforcement group is applied to the port. If a port is in both a Forced Registration group and a Forced Remediation group, the group with the numerical priority (rank) will dictate the VLAN and access level assigned to all hosts on that port.
This mechanism ensures consistent behavior across the fabric. If the ranking determines that "Forced Registration" is higher priority, then even a known host that is failing a compliance scan (which would normally trigger Remediation) will be held in the Registration VLAN because the port-level enforcement takes precedence based on its rank.
"A port can be a member of multiple groups. If more than one group has an enforcement assigned, the group with the highest rank (lowest numerical value) is used to determine the enforcement for the port. When a port is placed in a group with an enforcement, that enforcement is applied to all hosts connected to that port, regardless of the host's current state." ― FortiNAC-F Administration Guide: Port Group Enforcement and Ranking.

Explanation:
In FortiNAC-F, accountability and forensic tracking of configuration changes are managed through the Admin Auditing functionality. When an administrator performs an action that modifies the system state―such as creating a policy, changing a device's status, or adding a switch port to an Enforcement Group―the system generates an audit record. This record is essential for troubleshooting scenarios where unauthorized or accidental configuration changes have occurred, leading to unintended network behavior.
The Admin Auditing view (found under Logs > Admin Auditing) provides a comprehensive log of the "Who, What, and When" for every administrative session. Each entry includes the username of the administrator, the source IP address from which they accessed the FortiNAC-F console, a precise timestamp, and a detailed description of the modification. In the scenario described, where ports have been incorrectly added to enforcement groups, the Admin Auditing view allows a supervisor to filter by the specific "Port" or "Group" object to identify exactly which administrator executed the command.
In contrast, the Event Management view (B) is designed to monitor system and network events, such as RADIUS authentications, host connections, and SNMP trap arrivals. While it tracks system activity, it does not typically log the manual configuration changes performed by admins. The Port Changes view (C) tracks the operational history of a port (such as VLAN assignment changes and host movements) but does not attribute the administrative assignment of the port to a group. Finally, the Security Events view (D) is dedicated to alerts triggered by security rules and external threat feeds.
"Admin Auditing displays a record of all modifications made to the FortiNAC-F system by an administrator. This view includes the administrator's name, the date and time of the change, and a description of the action taken. It is the primary resource for determining which administrative user performed a specific configuration change, such as modifying port group memberships or altering policy settings." ― FortiNAC-F Administration Guide: Logging and Auditing Section.

Explanation:
The User/Host Profile is the primary mechanism in FortiNAC-F for identifying and categorizing endpoints to determine their level of network access. According to the FortiNAC-F Administration Guide, a profile is built using a combination of criteria that define "Who" is connecting, "What" device they are using, and "Where" they are located on the network.
The three main categories of criteria available in the configuration are:
Host or User Attributes (B): This includes specific details such as the host's operating system, the user's role (e.g., Employee, Contractor), or custom attributes assigned to the record.
Host or User Group Memberships (A): Profiles can be configured to match endpoints that are members of specific internal FortiNAC groups or synchronized directory groups (like LDAP or Active Directory groups). This allows for broad policy application based on organizational structure.
Location (E): The "Where" component allows administrators to restrict a profile match to specific physical or logical areas of the network, such as a particular switch, a group of ports, or a specific SSID.
Criteria like an "applied access policy" (D) are the outcome of a profile match rather than a criterion used to define the profile itself. Similarly, the "Adapter current VLAN" (C) is a dynamic state that changes based on enforcement and is not a standard static identifier used for profile matching.
"User/Host Profiles are used to identify the hosts and users to which a policy will apply. Profiles are created by selecting various criteria in the Who/What (Attributes and Groups) and Where (Locations) sections. Attributes can include Host Role, User Role, and OS. Group memberships allow matching based on internal or directory-based groups. Location criteria allow for filtering based on the device or port where the host is connected." ― FortiNAC-F Administration Guide: User/Host Profile Configuration.

Explanation:
The integration of FortiNAC-F with FortiGate VPN requires a specific policy workflow to bridge the gap between initial user authentication and full network access. When a user connects to the VPN, the FortiGate typically provides the User ID and IP address, but FortiNAC-F requires a MAC address to uniquely identify and manage the endpoint's record.
According to the FortiGate VPN Integration Guide, the Endpoint Compliance Policy is a mandatory component of this setup because it is used to designate the required agent type. Because a VPN connection is Layer 3, FortiNAC cannot "see" the MAC address through traditional SNMP or L2 polling. The compliance policy instructs the system to present a Captive Portal to the remote user, requiring them to download and run either the Persistent or Dissolvable Agent. The agent then reports the device's MAC address back to FortiNAC, allowing the system to correlate the VPN session with a host record.
Once the agent is running and the MAC is known, FortiNAC-F can evaluate the device's security posture (if scanning is configured) and send the necessary FSSO tags back to the FortiGate to lift the initial network restrictions. Without the compliance policy to enforce the agent requirement, the connection would remain in an isolated "IP-only" state with no unique hardware identity.
"The Endpoint Compliance Policy is necessary to control the agent requirement for VPN users. Create a default VPN Endpoint Compliance Policy to distribute an agent via captive portal for isolated machines. This policy allows the administrator to designate the required agent type (Persistent or Dissolvable) that will be used to collect the hardware (MAC) address and perform health scans on the remote endpoint." ― FortiNAC FortiGate VPN Integration Guide: Default Endpoint Compliance Policy (Optional) Section.
