Explanation:
The correct answers are B and C. The study guide states that “You can use application control signatures to detect OT protocols” and that “Application control detects the protocols used in applications like Modbus, IEC 104, and the contents of the telecontrol messages”. It also shows that a Modbus application control profile can be enabled on a firewall policy “for OT protocol visibility in the monitor status.” This directly supports B, because application control is the feature used to identify and monitor OT protocols on FortiGate.
The guide also explains under IPS that “By default, OT signatures are excluded from the signatures lists on the GUI until you enable them on the CLI” using config ips global and set exclude-signatures none. Once enabled, FortiGate can use those OT signatures for OT-aware inspection and protection. That supports C as the second required configuration. A is related to device discovery, not protocol identification, and D is focused on exploit and vulnerability detection rather than the first-step goal of identifying OT protocols.

Explanation:
The correct answer is C. Application sensor set to monitor on all the FortiGate devices.
The study guide clearly explains that application control is the feature used to identify OT protocols. It states that “application control detects the protocols used in applications like Modbus, IEC 104, and the contents of the telecontrol messages” and also says “You can use application control signatures to detect OT protocols.” It further shows an example where a Modbus application control profile is enabled on a firewall policy “for OT protocol visibility in the monitor status.” This directly matches the requirement in the question, which is to detect OT protocols and increase traffic visibility.
The other options do not fit the requirement as precisely. Device detection is for identifying devices and collecting endpoint information, not for detecting industrial protocols. Inline IDS and IPS are focused more on detecting or blocking attacks, exploits, protocol abnormalities, and known vulnerabilities. While IPS can inspect some OT traffic, the study guide distinguishes it from application control by stating that IPS signatures tend to detect exploits, whereas application control signatures tend to provide protocol detection at various levels. Therefore, the required security sensor for OT protocol detection and traffic visibility is the application sensor in monitor mode.

Explanation:

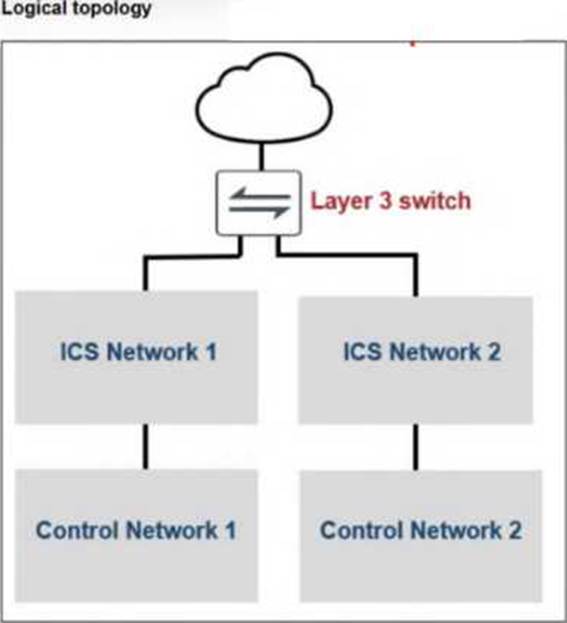

The correct answer is D. You can configure forward domain IDs for each network. The study guide explains that in FortiGate transparent mode, “all interfaces belong to the same broadcast domain, even interfaces with different VLAN IDs” and then states that you should “use this command to subdivide into multiple broadcast domains” with set forward-domain <domain_ID>. It further explains that “interfaces with the same domain ID belong to the same broadcast domain” and “traffic arriving on one interface is broadcast only to interfaces in the same forward domain ID.” This is exactly the mechanism used to separate one internal network from another and improve segmentation.
The other options do not match this requirement. Universal ZTNA is described as controlling user access to applications, not segmenting two internal OT networks. An explicit software switch is for controlling intra-switch or intra-VLAN traffic inside the same software switch broadcast domain, which is more aligned with microsegmentation than separating two routed internal networks. One traffic VDOM does not create segmentation by itself; segmentation with VDOMs requires multiple VDOMs, not one. Therefore, the best choice for segmenting network 1 and network 2 in this scenario is to assign separate forward domain IDs.

Explanation:
Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

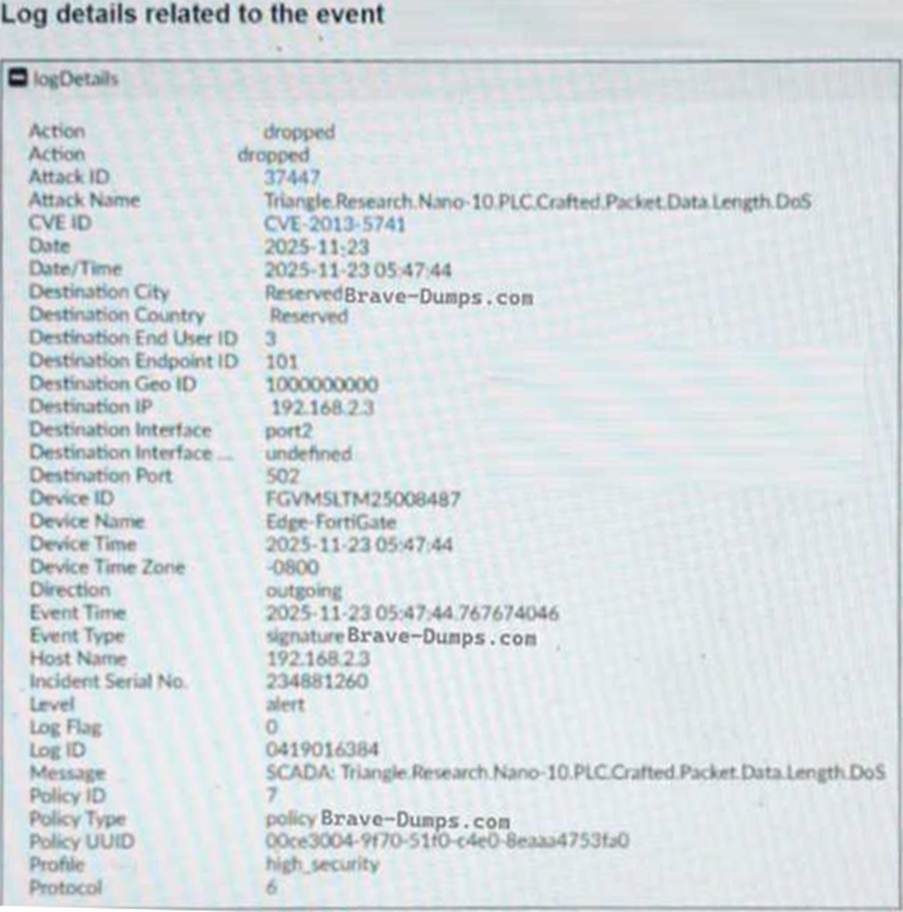

Industrial Protocol Identification (Statement A): The log details exhibit clearly shows that the Destination Port used in the attack is 502. According to the study guide's section on Industrial Protocol Protection, the standard port used by the Modbus TCP protocol is 502. Furthermore, the attack name identifies a "Triangle.Research.Nano-10.PLC," which are industrial controllers commonly utilizing Modbus for communications.
Attack Mitigation (Statement B): The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped. In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

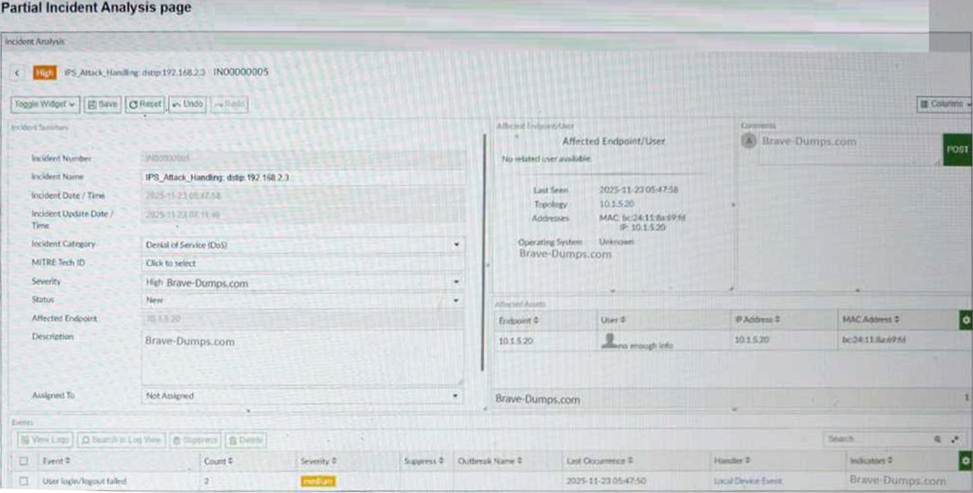

Target IP Address (Statement E): The log detail explicitly lists the Destination IP as 192.168.2.3. The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the "Affected Endpoint" is shown as 10.1.5.20, in an "outgoing" attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.
Protocol Conflict (Statement C): The IEC 104 protocol typically utilizes port 2404. Since the log specifies port 502, Statement C is incorrect.
Severity Distinction (Statement D): While the Incident severity is marked as High, the question specifically asks about event severity. The "Events" table at the bottom of the Incident Analysis page shows a "User login/logout failed" event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

Explanation:
According to the OT Security 7.6 Architect study guide regarding FortiAnalyzer Event Management:
Notification Options: When configuring a new event handler, FortiAnalyzer provides several built-in notification methods to alert administrators when specific log criteria are met. The most common and direct method is Send alert email (Option A).
Incident Management: To streamline the SOC workflow, an event handler can be configured to Automatically create an incident (Option D) based on the triggered event. This moves the event into the Incident Manager for further analysis.
Security Fabric Integration: In the 7.6 architecture, event handlers can directly trigger an Automation stitch (Option E). This allows the FortiAnalyzer to notify the root FortiGate to take action (like running a CLI script or changing a policy) across the Security Fabric.
Exclusions: Create a report (Option B) is typically a task performed by a Playbook or a scheduled report job, not a direct setting inside the basic event handler configuration. Quarantine an attacker (Option C) is an action that results from an automation stitch or playbook, but it is not a direct configuration toggle within the event handler itself
