Explanation:
The correct answers are B. IPS on FortiGate_Level5 and C. Virtual patching on FortiGate_Level2.

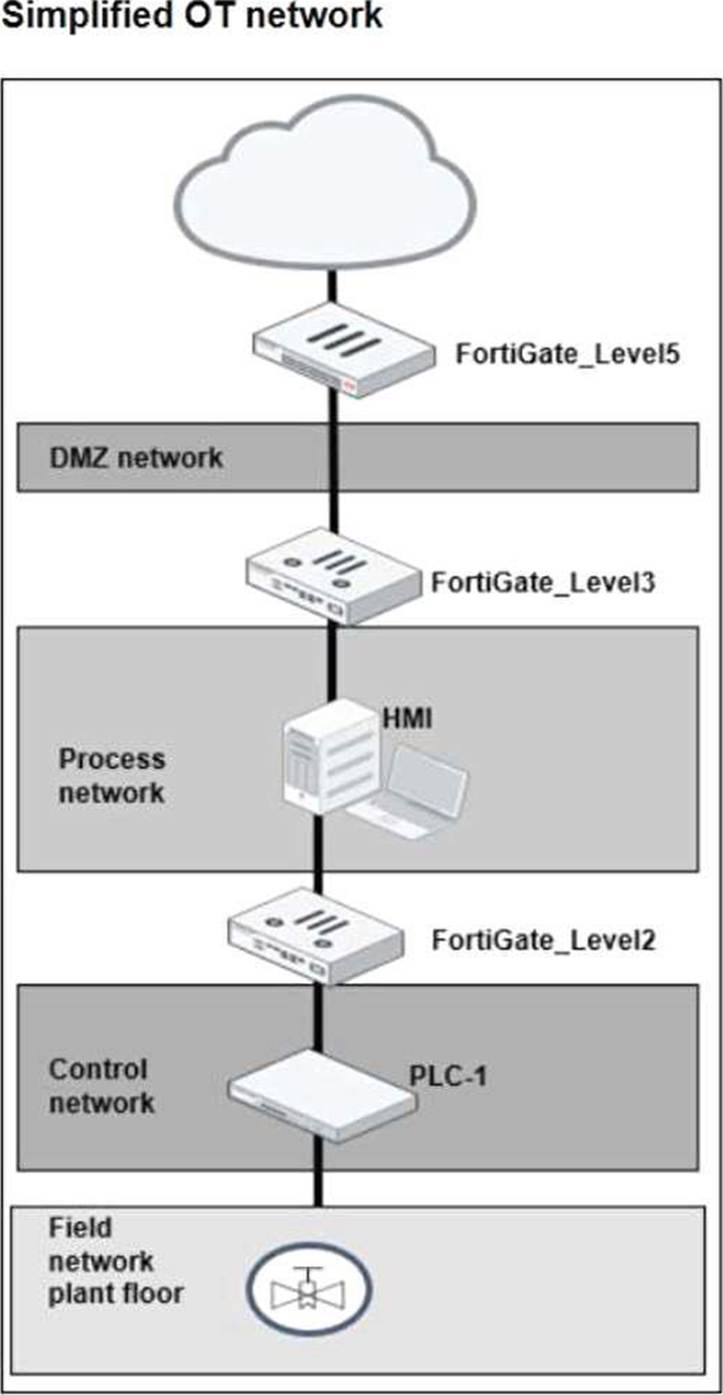

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected. This makes FortiGate_Level5, at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.
The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.
Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats.
Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices.

Explanation:
The verified answer is C. The Fabric settings. The study guide ties FortiAnalyzer-triggered actions to the Security Fabric relationship with FortiGate, not to playbook tasks or standalone event handlers alone. It explains that “within the Security Fabric environment, FortiAnalyzer is a key element in the creation of automation stitches” and shows the flow where a downstream
FortiGate sends logs to FortiAnalyzer, then FortiAnalyzer parses the logs and notifies the root FortiGate, after which the root FortiGate triggers the action. This shows that FortiAnalyzer must be configured so it can communicate with FortiGate through the Security Fabric.
The guide also states that FortiAnalyzer is the foundation of the Security Fabric, providing logging, reporting, analytics, and automation for Fabric devices and endpoints. It further explains that the FortiAnalyzer Fabric connector consolidates the traffic logs within the Security Fabric. This confirms that the automation workflow depends on proper Security Fabric integration. A playbook task is used for automated SOC actions, and an event handler is used to generate events from logs, but neither one alone establishes the direct communication path needed between FortiAnalyzer and FortiGate .
Therefore, the required configuration on FortiAnalyzer is the Fabric settings.

Explanation:
Based on the architecture of FortiAnalyzer within the Security Fabric and its automation capabilities:

Explanation:
Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

Explanation:
The correct answer is C. The output of the CLI command get rule otvp status. In the Virtual Patching section, the study guide shows the workflow where FortiGate queries FortiGuard for device-specific vulnerabilities, receives OT virtual patching signatures, maps them to the device MAC address, and then explicitly displays the CLI verification command get rule otvp status together with fields such as Rule-name, Vuln_type, and Cve. This is the direct confirmation mechanism shown in the guide for checking whether OT devices have virtual patching rules associated with them.
The other options are less accurate for confirmation. The OT View page is for Purdue-level visualization, and the Asset Identity List page shows device and asset information, but neither is presented in the guide as the command or control used to verify virtual patching status. The study guide specifically uses get rule otvp status as the status check tied to virtual patching behavior.
