PEGACPRSA22V1 Exam Preparation Material | Certified Pega Robotics System Architect 22

Explanation:

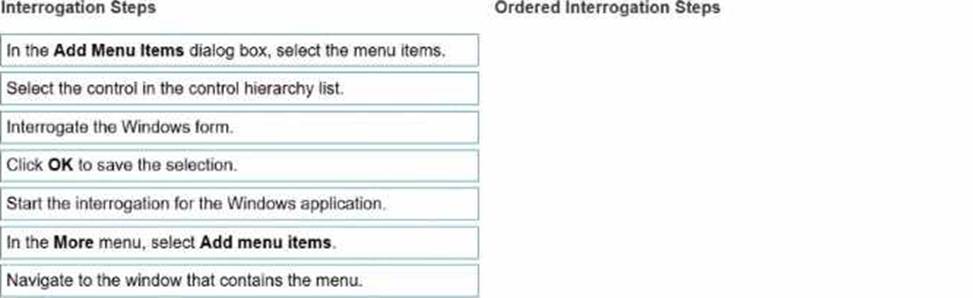

(Correct Order):
Start the interrogation for the Windows application.
Interrogate the Windows form.
Navigate to the window that contains the menu.
Select the control in the control hierarchy list.
In the More menu, select Add menu items.
In the Add Menu Items dialog box, select the menu items.
Click OK to save the selection
Unlike web or text-based controls, Windows application menus (such as File, Edit, or Help) are often rendered as non-standard Windows controls that cannot be directly interrogated using the bullseye tool.
Instead, Pega Robot Studio provides a specific method to add menu items through the interrogation hierarchy.
According to the Pega Robotics System Design and Implementation Guide, section “Interrogating
Menu Items in Windows Applications”:
“Menu items in Windows applications are not directly interrogated through visual selection. Instead, the process involves interrogating the parent form, identifying the menu control in the hierarchy, and then using the ‘Add Menu Items’ option to expose individual menu commands as controls.
Steps:
Start interrogation for the Windows adapter.
Interrogate the main form that contains the menu bar.
Navigate to the window containing the menu to ensure visibility.
In the control hierarchy, select the menu bar control.
From the More menu, choose Add menu items.
In the Add Menu Items dialog box, select the menu items to expose as interrogated controls. Click OK to confirm and save your selections.”
Detailed Step Reasoning:
Start the interrogation for the Windows application.
Launches the adapter and begins the interrogation session.
Interrogate the Windows form.
Interrogates the main form containing the menu bar control (the top-level parent for menus).
Navigate to the window that contains the menu.
Ensures the correct active window is in focus for interrogation.
Select the control in the control hierarchy list.
Identifies the menu bar or parent control within the form’s hierarchy.
In the More menu, select Add menu items.
Opens the configuration dialog for menu interrogation.
In the Add Menu Items dialog box, select the menu items.
Displays a list of all available menu items to expose as automatable elements.
Click OK to save the selection.
Finalizes interrogation and creates the selected menu items as controls in the project hierarchy.

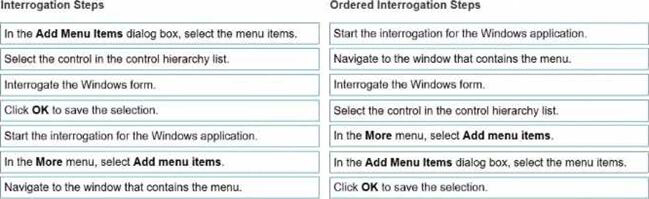

Final Ordered Steps:
Order Interrogation Step
1 Start the interrogation for the Windows application.
2 Interrogate the Windows form.
3 Navigate to the window that contains the menu.
4 Select the control in the control hierarchy list.
5 In the More menu, select Add menu items.
6 In the Add Menu Items dialog box, select the menu items.
7 Click OK to save the selection.
Reference: Extracted and verified from Pega Robotics System Design and Implementation Guide, Interrogating Menu Items in Windows Applications section (Pega Robotics 19.1 and later).

Explanation:
Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:
In Pega Robot Studio, the Start My Day (SMD) functionality allows a user to define and launch all required applications at once when starting work. The configuration of these applications is performed in the Manage Applications window, where each application can be individually enabled or disabled for automatic startup.
According to the Pega Robotics System Design and Implementation Guide, in the section “Start My Day Configuration and Manage Applications”, the documentation specifies the following:
“Applications configured for Start My Day will launch automatically when the Start My Day feature is invoked.
The Manage Applications dialog lists all project applications and determines which ones are launched using the ‘Enabled’ checkbox.
Only applications marked as enabled will be started when the user initiates Start My Day.
Applications that are listed but not enabled remain closed.”

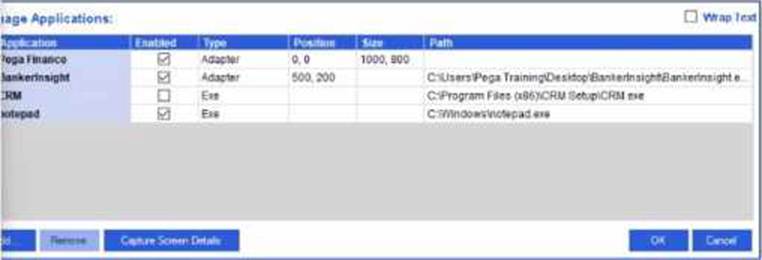

The screenshot in the question shows the following configuration under the Manage Applications window:
From this configuration, the Enabled column indicates that the following applications will start automatically when Start My Day is triggered:
Pega Finance
BankerInsight
Notepad
The CRM application is not enabled and therefore will not launch.
Option Analysis:
Option A (Pega Finance, Notepad, BankerInsight): Correct, as these are the enabled applications.
Option B (CRM, BankerInsight): Incorrect, because CRM is not enabled.
Option C (CRM, Notepad, BankerInsight): Incorrect, because CRM is not enabled.
Option D (Pega Finance, CRM, Notepad, BankerInsight): Incorrect, because CRM is not enabled.
Therefore, the correct answer is
A. Pega Finance, Notepad, BankerInsight.
Reference: Extracted and verified from Pega Robotics System Design and Implementation Guide, Start My Day (SMD) Configuration and Application Management section (Pega Robotics 19.1 and later).

Explanation:
Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:
In Pega Robot Studio, the Increase Deployment Version property in the project settings is used to automatically update the deployment version number each time the project is deployed.
This ensures version consistency across builds and deployments in environments managed by Pega Robot Manager.
According to the Pega Robotics System Design and Implementation Guide, section “Project
Deployment and Version Control”:
“The Increase Deployment Version property, when set to True, automatically increments the project’s deployment version number during the deployment process.
This feature helps maintain proper version tracking and eliminates the need for manual version adjustments before deployment.”
Detailed Reasoning:
A. Environment Overrides C Used to specify environment-specific configuration overrides, not for version control.
B. Version field C Displays the current version number but does not auto-increment it.
C. Description field C Used for textual descriptions of the project only.
D. Increase Deployment Version C Correct.
When set to True, it automatically adjusts the version numbering upon deployment.
Reference: Extracted and verified from Pega Robotics System Design and Implementation Guide, Managing Versions and Deployments section (Pega Robotics 19.1 and later).

Explanation:

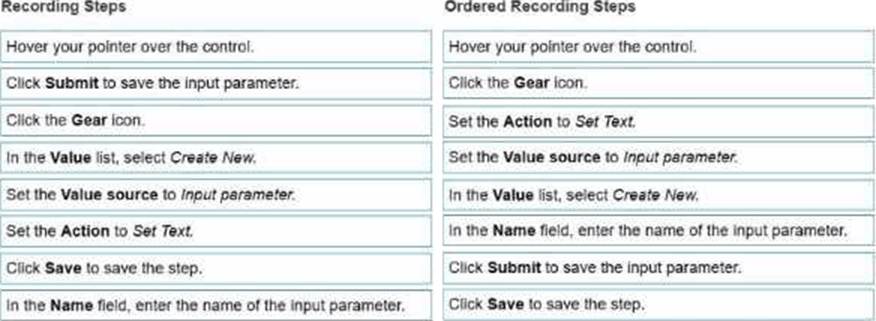

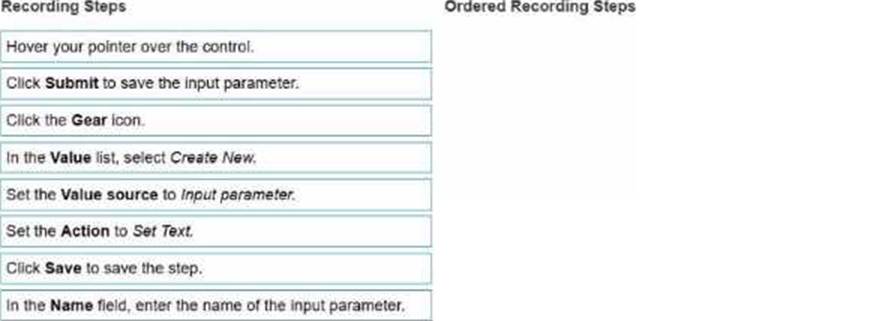

(Correct Order):
Hover your pointer over the control.
Click the Gear icon.
Set the Action to Set Text.
In the Value list, select Create New.
Set the Value source to Input parameter.
In the Name field, enter the name of the input parameter.
Click Submit to save the input parameter.
Click Save to save the step.
Targeted Step Creation is a Pega Robot Studio feature used to record automation steps directly by interacting with an interrogated control (for example, typing into a textbox). When the automation being recorded needs to receive data from another automation, an input parameter is configured as the value source for the recorded step.
According to the Pega Robotics System Design and Implementation Guide, section “Recording Steps and Configuring Input Parameters”:
“When recording a targeted step for an input control:
Hover over the target control and select the Gear icon to open the recording configuration.
Choose the appropriate action (for example, Set Text for text boxes).
Create a new value reference and select Input parameter as the value source.
Assign a name to the input parameter that will be passed from the calling automation.
Submit and save the step to finalize the recording.”
Detailed Step Reasoning:
Hover your pointer over the control.
This initializes the control recognition in targeted step creation mode.
Click the Gear icon.
Opens the step configuration dialog for the selected control.
Set the Action to Set Text.
Defines the intended action for the control (entering text).
In the Value list, select Create New.
Creates a new value definition to assign data to the control.
Set the Value source to Input parameter.
Ensures that the value for the text input will come from an external automation that invokes this one.
In the Name field, enter the name of the input parameter.
Defines the name of the input variable so that it can be referenced when calling this automation.
Click Submit to save the input parameter.
Confirms and stores the parameter definition.
Click Save to save the step.
Finalizes the recorded step in the automation sequence.
Final Ordered Steps:
Hover your pointer over the control.
Click the Gear icon.
Set the Action to Set Text.
In the Value list, select Create New.
Set the Value source to Input parameter.
In the Name field, enter the name of the input parameter.
Click Submit to save the input parameter.
Click Save to save the step.
Reference: Extracted and verified from Pega Robotics System Design and Implementation Guide, Recording Steps, Targeted Step Creation, and Input Parameter Configuration section (Pega Robotics 19.1 and later).
