Question#1

To remove the midplane, use both hands to lift the midplane bracket straight up and out of the chassis .
True or False?

A. True
B. False

Explanation:
Understanding the Midplane in Supermicro MI300X Systems
The midplane in the Supermicro MI300X GPU system acts as a central connection hub that links various system components, such as:
✑ NVMe storage backplanes
✑ PCIe interconnects
✑ Power distribution pathways
✑ Motherboard to GPU communication lanes
Because of its delicate nature and multiple connectors, it must be removed carefully to avoid damaging fragile electrical contacts.
Correct Midplane Removal Process
To safely remove the midplane, follow these Supermicro-recommended steps:
✑ Ensure all power is fully disconnected
✑ Detach all necessary trays and cables
✑ Use both hands for removal
✑ Ensure no resistance is felt
Why Using Both Hands is Crucial?
✑ Prevents bending or flexing
✑ Avoids strain on connectors
✑ Ensures a firm grip
Why Other Answers Are Incorrect?
✑ If False were correct, it would suggest improper handling techniques that can damage the system.
Supermicro documentation clearly states that the midplane must be removed using both hands and in an upright motion.
Official Documentation Reference:
✑ Supermicro AS-8125GS-TNMR2 Disassembly Guideinstructs technicians to useboth hands and lift straight upto prevent damage.

Question#2

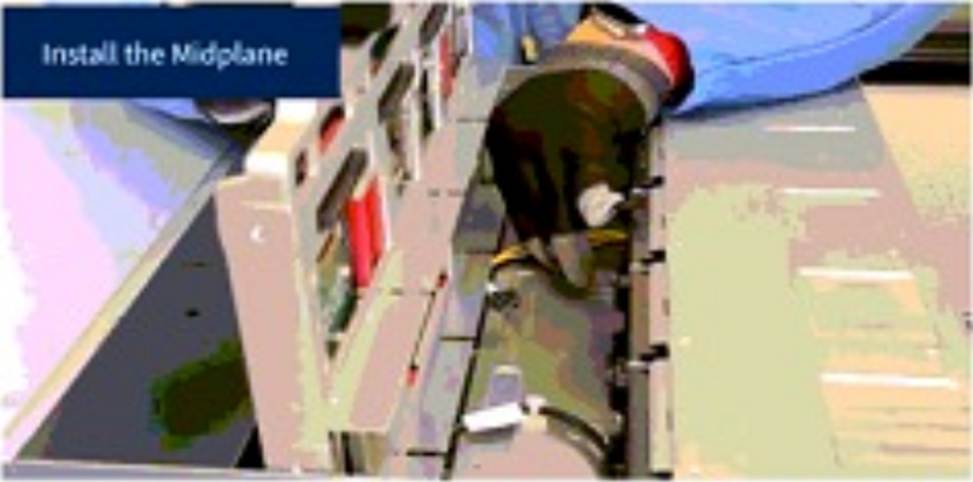

Exhibit:



When installing the midplane bracket back into the chassis, what design feature in the chassis helps you properly align the midplane bracket?

A. Guide stickers in the chassis
B. Grooves in the chassis
C. Arrows in the chassis
D. Velcro in the chassis

Explanation:
Why Do Supermicro Systems Use Grooves for Alignment?
In Supermicro MI300X systems, the midplane bracket is aligned using built-in grooves in the chassis.
✑ Ensures Perfect Alignment
✑ Prevents Installation Errors
✑ Supports a Tool-Free Installation
Why Other Options Are Incorrect?
A (Guide stickers in the chassis) Stickers may be present for labeling but do not physically align the midplane.
C (Arrows in the chassis) Arrows are visual indicators only, not physical alignment tools.
D (Velcro in the chassis) Velcro is not used in midplane installation.
Official Documentation Reference:
✑ Supermicro AS-8125GS-TNMR2 Hardware Guide explicitly states that grooves in the chassis help with midplane bracket alignment.

Question#3

When reinstalling the motherboard tray, is it necessary to align it properly with the chassis grooves before securing it with screws? True or False?

A. True
B. False

Explanation:
Importance of Proper Alignment in Motherboard Tray Installation
The motherboard tray in Supermicro MI300X systems is precisely designed to fit into pre-existing grooves in the chassis.
✑ Ensures a Secure Fit
✑ Prevents Cable Routing Issues
✑ Guarantees Proper PCIe and Power Connections
Proper Installation Steps for the Motherboard Tray:
Step 1: Slide the motherboard tray into the chassis grooves for proper alignment .
Step 2: Ensure it is flush with the chassis before securing screws.
Step 3: Tighten screws evenly to prevent misalignment.
Why is False Incorrect?
✑ If False were correct, it would imply that the motherboard tray can be installed without aligning it properly, which is not possible in Supermicro MI300X systems.
✑ The system will not function properly if the motherboard tray is misaligned.
Official Documentation Reference:
✑ Supermicro AS-8125GS-TNMR2 Service Manual confirms that the motherboard tray must be aligned with the grooves before securing it with screws.

Question#4

In order to remove the midplane from the AS-8125GS-TNMR2 system, and after you remove all the PSUs, you will need to disengage 3 trays.
What is the correct order for disengagement?

A. Disengage the PCIe tray first, then the GPU tray, and the motherboard tray last.
B. Disengage the PCIe tray first, then the motherboard tray, and the GPU tray last.
C. Disengage the motherboard tray first, then the PCIe tray, and the GPU tray last.
D. Disengage the GPU tray first, then the motherboard tray, and the PCIe tray last.

Explanation:
The correct order for removing trays before midplane removal is:
✑ Disengage the PCIe tray first
✑ Remove the GPU tray
✑ Remove the motherboard tray last
Why other options are incorrect?
B (Motherboard before GPU tray) The motherboard tray must be removed last to avoid disconnecting system-critical connections too early.
C (Motherboard tray first) Removing the motherboard first risks damaging PCIe and GPU components.
D (GPU tray first) The GPU tray is dependent on the PCIe tray being removed first, making this order incorrect.
Official Documentation Reference:
✑ Supermicro AS-8125GS-TNMR2 System Removal Guide outlines the correct order for tray disengagement before midplane removal.

Question#5

Which cable connecting the AOM card to the motherboard is NOT a data cable?

A. Power cable
B. MCIO cables
C. JNCIS1
D. SAS cable

Explanation:
The power cable is the only cable that is not a data cable when connecting an AOM card to the motherboard.
Cable Functionality Breakdown:
A (Power Cable) NOT a data cable
B (MCIO Cables) Data cables
C (JNCIS1) Data cable
D (SAS Cable) Data cable
Official Documentation Reference:
✑ Supermicro AOM Expansion Module Guide states that the power cable is the only non-data cable in AOM installations
