Explanation:

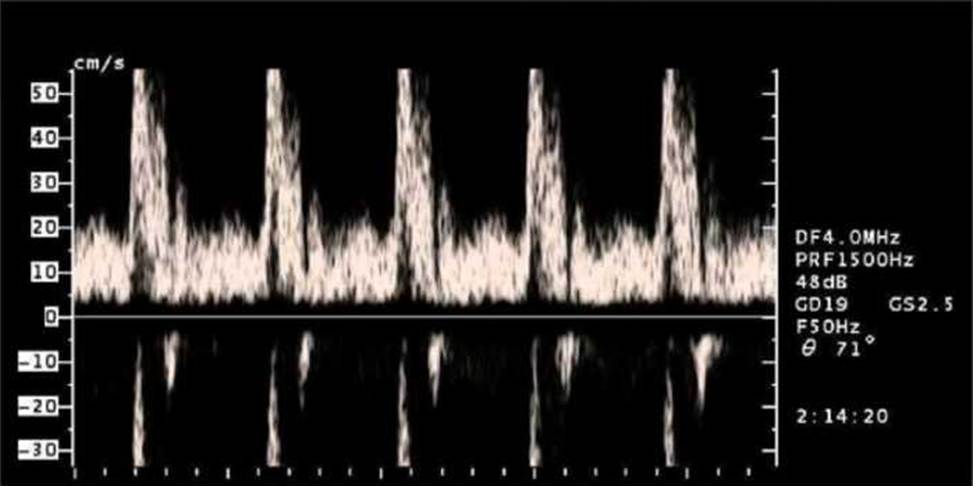

In the provided image, data below the baseline represents blood flow moving away from the transducer, which can indicate retrograde flow. When using spectral Doppler, the baseline separates flows towards and away from the transducer. Aliasing occurs when the velocity of blood flow exceeds the Nyquist limit, causing the display to wrap around and appear on the opposite side of the baseline. This phenomenon is common in high-velocity flow situations and results in part of the flow being displayed below the baseline. Retrograde flow further supports this, as it shows blood moving in the opposite direction to the expected flow.
Reference: ARDMS Sonography Principles & Instrumentation Guidelines
Kremkau FW. Sonography Principles and Instruments. 9th ed. Philadelphia, PA: Elsevier; 2016.

Explanation:
Lateral resolution describes the ability of an ultrasound system to distinguish between two structures that are side by side (perpendicular to the path of the ultrasound beam). This type of resolution depends on the beam width; narrower beams provide better lateral resolution. As the ultrasound beam travels deeper into the tissue, it generally widens, which can reduce lateral resolution. Techniques such as focusing the beam can help improve lateral resolution at specific depths by narrowing the beam width.
Reference: American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Explanation:
Comprehensive and Detailed Explanation From Exact Extract: M-mode (motion mode) ultrasound records the movement of structures along a single scan line over time. It is particularly valuable in cardiac imaging where precise motion of heart valves and walls is evaluated.
Principles and Instrumentation reference:
"M-mode is primarily used in echocardiography to evaluate the motion of cardiac structures with high temporal resolution."
Liver, kidneys, and pancreas are evaluated using B-mode, not M-mode.
Therefore, the correct answer is A: Heart.

Explanation:
Changing the displayed depth control directly affects the pulse repetition frequency (PRF). When the depth setting is increased, the ultrasound system needs more time to send and receive echoes from deeper structures, resulting in a lower PRF. Conversely, decreasing the depth allows for a higher PRF since the time required for the sound waves to travel to and from the structures is shorter. PRF is crucial for determining the maximum detectable velocity in Doppler ultrasound without aliasing.
Reference: ARDMS Sonography Principles and Instrumentation guidelines "Understanding Ultrasound Physics" by Sidney K. Edelman

Explanation:
Comprehensive and Detailed Explanation From Exact Extract:
Axial resolution is the system's ability to distinguish two structures located along the direction of the ultrasound beam (parallel to the beam axis). Test objects or phantoms contain closely spaced pins or reflectors along this axis to evaluate axial resolution.
Principles and Instrumentation state:
"Axial resolution is determined by the spatial pulse length and is tested using targets positioned along the beam axis."
Sensitivity (A) relates to detection of weak echoes.
Specificity (B) refers to diagnostic accuracy, not phantom testing.
Lateral resolution (C) is evaluated using side-by-side (perpendicular) targets.
Therefore, the correct answer is D: Axial resolution.
